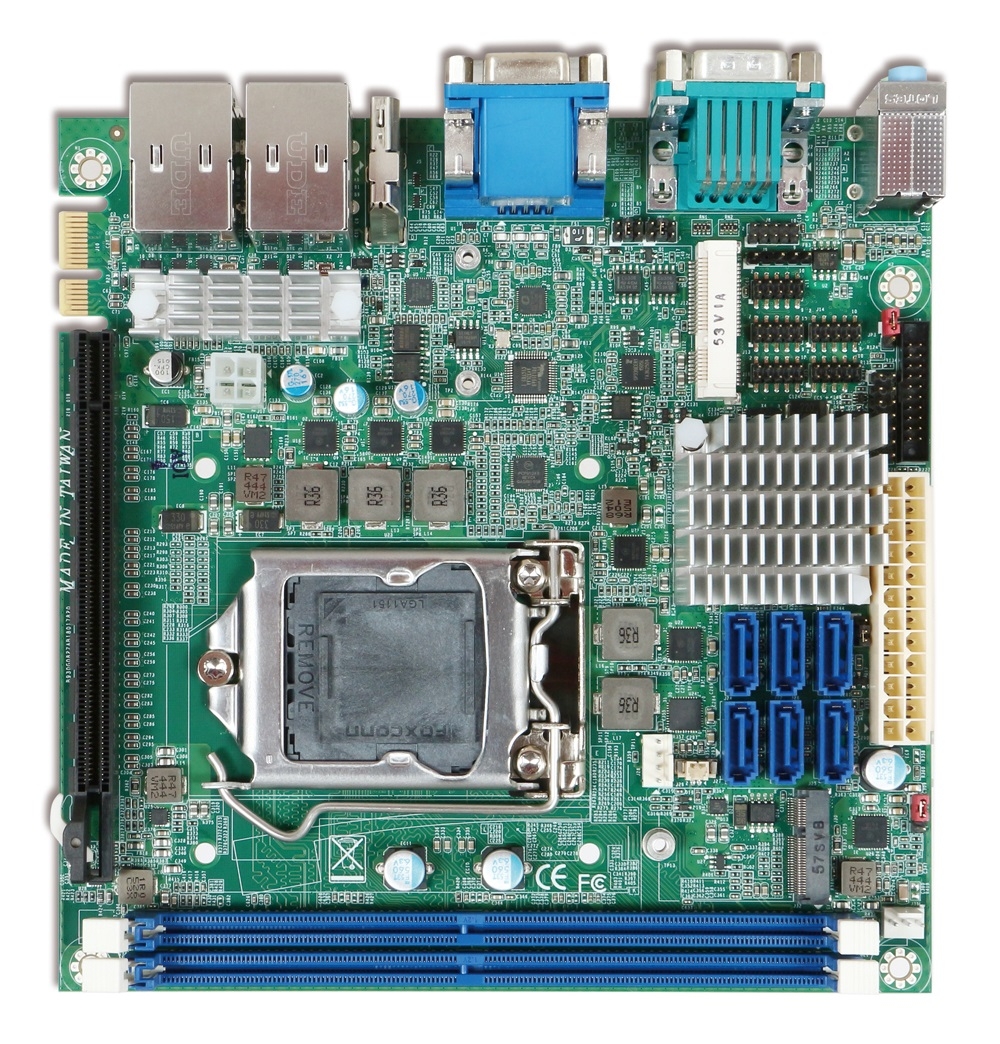

WADE-8017

Leading Desktop Intel® 7th and 6th Gen Core™ Processors (former Kaby Lake/Sky Lake) Mini-ITX with DDR4 SDRAM, Triple Displays, Two GbE LAN ports, Six COM Ports

Intel® 7th and 6th Gen Core Processors support
Up to 32GB SDRAM, two long-DIMM support DDR4 ECC/Non- ECC
Triple display : VGA/DP/HDMI
One PCIe x16 (Gen3)
One M.2 type E socket (H110 not support)
1x PCIe x1 Golden Finger support SEB
6x SATA III ports support RAID 0/1/5/10 (H110 just support 4x SATA

We also provide additional features to our finished products if requested.
Contact us, for customized product package!
Get A Quote

WADE-8017 is based on Intel® Q170/H110/C236 chipset and desktop processors including Intel® 7th and 6th Gen CoreTM i3/i5/i7 SKU. This board supports DDR4, PCIe 3.0, and SATAIII. Those fratures help you to build high performance and stability system.

Specifications

CPU:	Intel® Core™ i7-7700 Processor (4 x 3.60 GHz / 4.20 GHz, 8 MB SmartCache, 65 W) Intel® Pentium® Processor G4400 (2 x 3.30 GHz, 3 MB SmartCache, 54 W) Intel® Core™ i3-6100TE Processor (2 x 2.70 GHz, 4 MB SmartCache, 35 W) Intel® Core™ i3-6100 Processor (2 x 3.70 GHz, 3 MB SmartCache, 51 W) Intel® Core™ i5-6500TE Processor (4 x 2.30 GHz / 3.30 GHz, 6 MB SmartCache, 35 W) Intel® Core™ i5-6500 Processor (4 x 3.20 GHz / 3.60 GHz, 6 MB SmartCache, 65 W) Intel® Core™ i7-6700 Processor (4 x 3.40 GHz / 4.00 GHz, 8 MB SmartCache, 65 W) Intel® Core™ i7-6700TE Processor (4 x 2.40 GHz / 3.40 GHz, 8 MB SmartCache, 35 W) Intel® Core™ i3-7101TE Processor (2 x 3.40 GHz, 3 MB SmartCache, 35 W) Intel® Core™ i5-7500T Processor (4 x 2.70 GHz / 3.30 GHz, 6 MB SmartCache, 35 W) Intel® Core™ i5-7500 Processor (4 x 3.40 GHz / 3.80 GHz, 6 MB SmartCache, 65 W) Intel® Core™ i7-7700T Processor (4 x 2.90 GHz / 3.80 GHz, 8 MB SmartCache, 35 W) Intel® Pentium® Processor G4400TE (2 x 2.40 GHz, 3 MB SmartCache, 35 W)
Technology:	x86
Standard:	Mini-ITX
Chipset:	Intel® Q170
Memory:	2x DDR4 DIMM Up to 32GB
Graphic Controller:	Intel® HD Graphics
Graphic Interface:	HDMI (4096 x 2160), DP (4096x2304), VGA (1920x1200)
Storage:	6x SATA III (6.0Gb/s) (1x SATA III switch mSATA), -
Ethernet:	Intel® I219LM and Intel® I211AT Ethernet controller 2x RJ45 connectors on rear I/O
Expansion:	1x Mini-PCIe socket (Support mSATA)
Bus Interface:	1x PCI-Express x16 slot, 1x PCIe x2 on golden finger
Serial Interface:	5x RS232, 1x RS232/422/485
USB:	4x USB 3.0, 4x USB 2.0
Audio:	Realtek ALC886-GR HD Audio codec
Miscellaneous:	GPIO 8bit,Watchdog Timer,HW monitoring: temperature & voltage
Firmware:	AMI UEFI BIOS (SPI ROM)
Power Requirement:	ACPI 3.0 / APM 1.2
Power:	ATX 24-pin power input
Operating Temperature:	0°C - 60°C
Storage Temperature:	-20~80˚C
Dimensions:	170x170 mm

Order Info

Downloads

Related Products

name	code	description	availability
WADE-8017-H110	AB1-3D75Z	Mini-ITX ESB, H110, ECC LGA1151, DDR4 SDRAM, VGA, DP, HDMI, Dual GbE, COM, Audio, USB	MP
WADE-8017-C236	AB1-3D76Z	Mini-ITX ESB, C236, ECC LGA1151, DDR4 SDRAM, VGA, DP, HDMI, Dual GbE, COM, Audio, USB	MP
WADE-8017	AB1-3D16Z	Mini-ITX ESB.Q170 w/o LGA1151.w/DDR4 SDRAM/VGA/DP/HDMI/ Dual GbE/COM/Audio/USB	Now

Back to list
