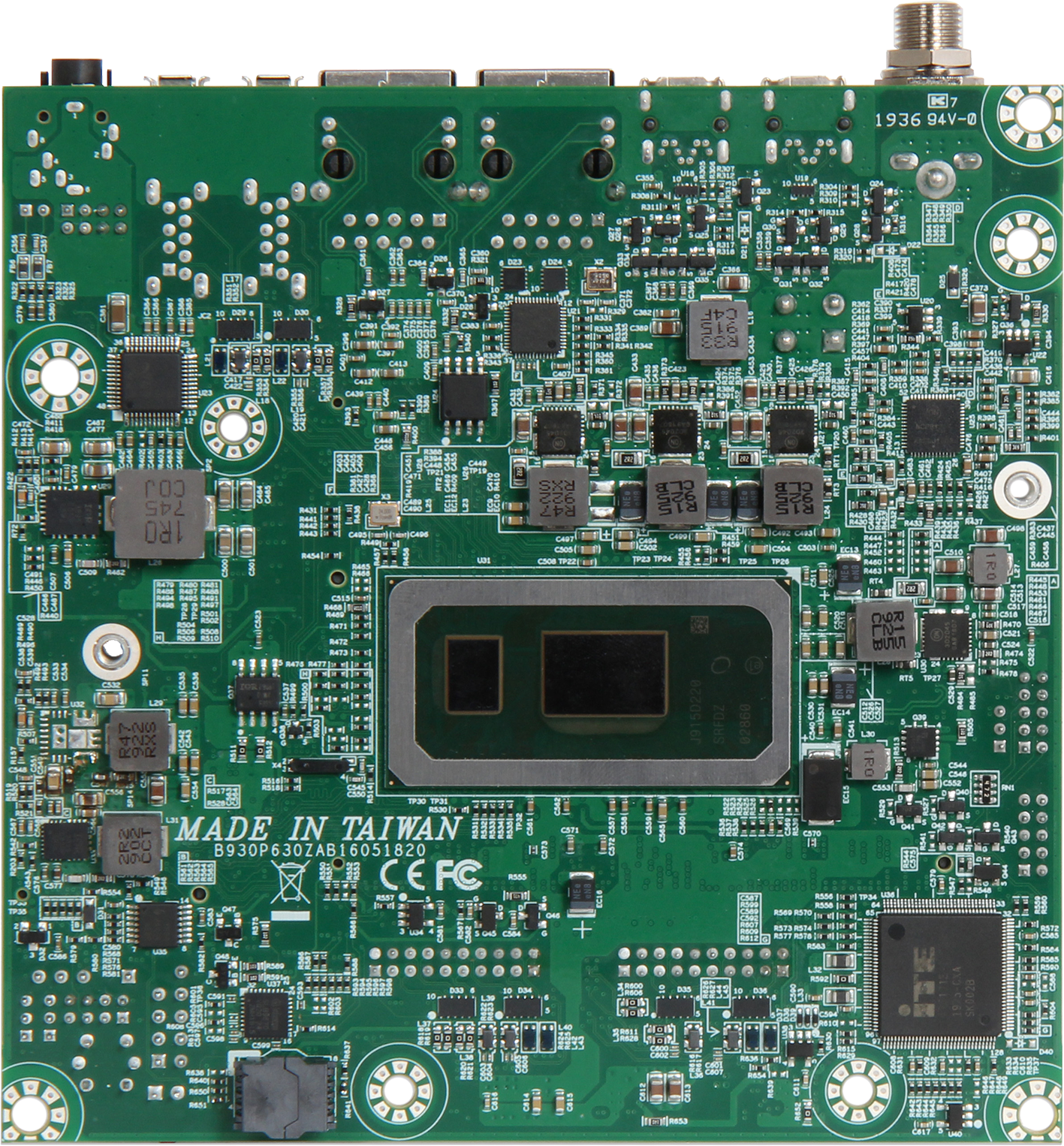

NANO-6051

Intel® 8th Generation Core™ i7/i5/i3 Processors based on NANO-ITX Board

Intel® 8th Gen Core™ i7, i5 and i3 processor
Up to 32GB DDR4 2400 non-ECC SO-DIMM
2x mini DP ports
1x M.2 Type M, 1x M.2 Type E
2x USB 3.1, 4x USB 3.0
DC 12V input
TPM 2.0 (On board)

We also provide additional features to our finished products if requested.
Contact us, for customized product package!
Get A Quote

NANO-6051 is built with Intel® 8th Generation Core™ i7/i5/i3 Processors (Whiskey Lake) and takes advantages of Intel® Core™ mobile processor technologies such as Hyper-Threading, high performance, and low power consumption. Portwell NANO-6051 based systems are ideal for passively cooled and hermetically sealed systems that can be used in various environments. NANO-6051 is an ideal platform with HD graphic output for POS, kiosk, digital signage and transportation applications.

Specifications

Order Info

Downloads

Related Products

name	code	description	availability
NANO-6051-8665UE	tbd	Intel® Core™ i7-8665UE 1.7GHz Quad Core w/DDR4 SO-DIMM/two mini DP/dual GbE LAN/USB/M.2	MP
NANO-6051-8365UE	tbd	Intel® Core™ i5-8365UE 1.6GHz Quad Core w/DDR4 SO-DIMM/two mini DP/dual GbE LAN/USB/M.2	MP
NANO-6051-8145UE	tbd	Intel® Core™ i3-8145UE 2.2GHz Dual Core w/DDR4 SO-DIMM/two mini DP/dual GbE LAN/USB/M.2	MP

Back to list

CPU:	Intel® Core™ i7-8665UE Processor (4 x 1.70 GHz / 4.40 GHz, 8 MB, 15 W) Intel® Core™ i5-8365UE Processor (4 x 1.60 GHz / 4.10 GHz, 6 MB, 15 W) Intel® Core™ i3-8145UE Processor (2 x 2.20 GHz / 3.90 GHz, 4 MB, 15 W)
Technology:	x86
Storage Temperature:	-40°C to 85°C
Operating Temperature:	0°C to +60°C
Power:	CPUs with 15W TDP
Power Requirement:	DC 12V
Firmware:	AMI uEFI BIOS
Audio:	- HDA controller integrated in Intel® SoC - Realtek ALC888S HDA codec, Audio Combo Jack on rear I/O with Line-out/Mic-in and on board pin header with Line-in, Line-out, Mic-in
USB:	- 2x USB 3.2(Gen2) ports on rear I/O - 4x USB 3.2(Gen1) ports on board
Serial Interface:	1x RS-232/422/485 on board connector (selected by bios)
Expansion:	- 1x M.2 Type M 2280 socket - 1x M.2 Type E 2230 socket
Ethernet:	- Intel® I210AT and Intel® I219LM Ethernet Controller - 2x RJ-45 connectors on rear I/O
Storage:	1x M.2 Type M 2280 socket
Graphic Interface:	2x Mini DP on Rear I/O, up to 4096x2304 resolution
Graphic Controller:	- Intel® HD Graphics 5500/6000 supports DirectX11.2, OpenGL 4.3 / OpenCL 2.0 - Video decode HW acceleration support for H.264/AVC, VC-1, MPEG2, VP8
Memory:	Up to 32GB DDR4 2400 non-ECC SO-DIMM
Chipset:	SoC (System-On-Chip)
Standard:	Nano-ITX
Dimensions:	120x120 mm
MTBF:	Over 100,000 hours at 40°C
