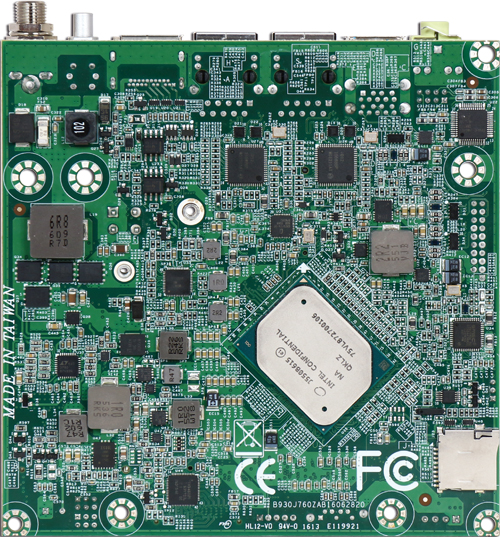

NANO-6062

Intel Atom™ processor E3900 product family based Nano-ITX embedded system board with triple displays, Gigabit Ethernet, USB 3.0, M.2, SATA III, Mini PCIe and mSATA

Intel® Atom™ Dual/Quad Core E3900 series SoC
Up to 8GB on one DDR3L 1600/1333 SODIMM
Triple display by VGA, DisplayPort and LVDS
1x M.2 socket, SATA III port, Mini PCIe and mSATA socket
Wide power input range DC 12V-24V
Wide industrial temperature range -40C to 85C

We also provide additional features to our finished products if requested.
Contact us, for customized product package!
Get A Quote

NANO-6062 build with Intel® Atom™ processor E3900 series. Not only does it operates with TDP under 12W for fan-less applications, but it also supports industrial temperature range from -40°C to 85°C and wide voltage of power input from 12V to 24V.

Support for four USB 3.0 ports ensures fast data transmission with low-power consumption. Two SATA 3.0 interfaces with up to 6 Gb/s (one of them available as mSATA and the other for SATA) allow quick and flexible system expansions. Intel I210-IT Gigabit Ethernet controllers provide dual Gigabit Ethernet LAN access via the two RJ45 ports. NANO-6062 can design their own unique systems for Medical, Networking, Panel PC, Kiosk and Digital Signage applications.

Specifications

CPU:	Intel Atom® x5-E3930 Processor (2 x 1.30 GHz, 2 MB L2, 6.5 W) Intel Atom® x5-E3940 Processor (4 x 1.60 GHz, 2 MB L2, 9.5 W) Intel Atom® x7-E3950 Processor (4 x 1.60 GHz, 2 MB L2, 12 W) Intel® Celeron® Processor N3350 (2 x 1.10 GHz, 2 MB L2, 6 W) Intel® Pentium® Processor N4200 (4 x 1.10 GHz, 2 MB L2, 6 W)
Expansion:	GPIO 8-bit configurable controlled by embedded controller
Technology:	x86
Standard:	Nano-ITX
Chipset:	SoC (System-On-Chip)
Memory:	Up to 8GB DDR3L non ECC
Graphic Controller:	Intel® Gen 9 Graphics supports DirectX 12, OpenGL 4.2 / OpenCL 2.0; Video decode HW acceleration support for H.264, H.265, MPEG2, VC-1/WMV9, JPEG, VP8, and VP9

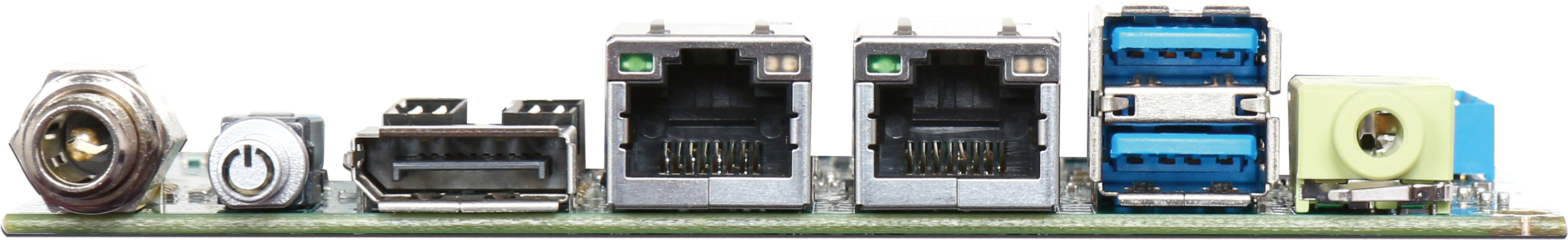

Graphic Interface:	DP port on rear I/O (4096 x 2160), VGA (1920x1200), 18/24bit LVDS (1920x1200)
Storage:	1x SATA III port, 1x mSATA socket, 1x Micro-SD socket
Ethernet:	Dual Intel® I210IT GbE controller (E3950/ E3940 only) 2x RJ45 connectors on rear I/O (E3950/ E3940 only), Intel® I210IT GbE controller and RJ45 connectors on rear I/O for E3930
Expansion:	1x M.2 socket (Type E), 1x full size Mini-PCIe socket
Bus Interface:	1x Mini PCIe™ full size (PCIe, mSATA)
Serial Interface:	1x RS-232/422/485 on board connector (selected by BIOS)
USB:	2x USB 3.0 ports on rear I/O, 2x USB 3.0 ports on board with pitch 3.0 header
Audio:	Intel® HD Audio
Miscellaneous:	GPIO 8bit,Watchdog Timer,Battery on board,HW monitoring: temperature & voltage
Firmware:	AMI UEFI BIOS
Power Requirement:	DC 12V - 24V
Power:	depends on used CPU
Operating Temperature:	-40C° to +85°C
Extended Temperature:	-40C° to +85°C
Storage Temperature:	-40C° to +85°C
Dimensions:	120x120 mm

Order Info

Downloads

Related Products

name	code	description	availability
NANO-6062-N4200	tbd	NANO ITX ESB, Intel N4200 (4 Core, 1.1 GHz), up to 8GB DDR3L RAM, 2xUSB3.0, 2xUSB2.0, GPIO, 1xRS-232/422/485, wide range power in 12-24V	Q4/2017
NANO-6062-N3350	tbd	NANO ITX ESB, Intel N3350 (2 Core, 1.1 GHz), up to 8GB DDR3L RAM, 2xUSB3.0, 2xUSB2.0, GPIO, 1xRS-232/422/485, wide range power in 12-24V	Q4/2017
NANO-6062-E3950	tbd	NANO-ITX ESB, Intel Atom? Dual Core 1.6GHz (12W), DDR3L SO-DIMM, VGA, LVDS, DP, Dual GbE LAN, M.2, SATA III	MP
NANO-6062-E3940	tbd	Nano-ITX ESB, Intel Atom? Quad Core 1.6GHz (9W), DDR3L SO-DIMM, VGA, LVDS, DP, Dual GbE LAN, M.2, SATA III	MP
NANO-6062-E3930	tbd	NANO-ITX ESB, Intel Atom? Dual Core 1.6GHz (6W), DDR3L SO-DIMM, VGA, LVDS, DP, Singal GbE LAN, M.2, SATA III	MP
