PB-Vortex-DX3

Embedded PC/104 based on Vortex86 DX3 processor with up to 2GB DDR3 memory, PCI, 24-bit LVDS, ISA, Gigabit Ethernet, USB and SATA

Vortex86 DX3 energy-efficient 32-bit x86 processor
6W TDP for fanless applications (CPU)
2GB DDR3L 1333 onboard
Dual LAN connector (1 x GbE,1 x Fast Ethernet)
4GB eMMC Flash onboard
GPIO 4x in & 4x out
Supports the PC/104+ and PC/104 connector onboard

We also provide additional features to our finished products if requested.
Contact us, for customized product package!
Get A Quote

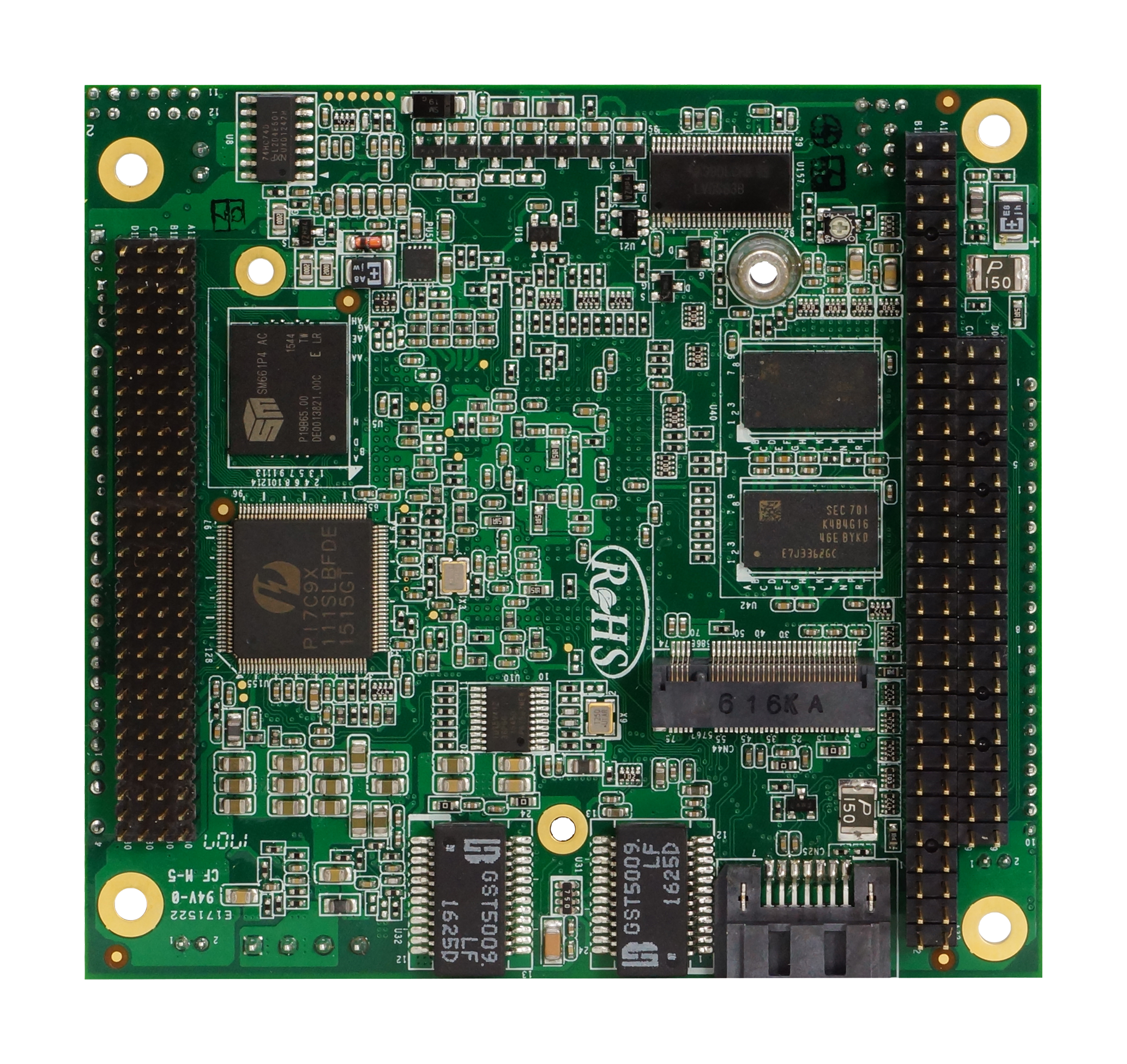

The PB-Vortex-DX3 with the dimensions 90x96mm is based on the DM&P Vortex86-DX3 system on chip (SoC). The clock frequency of the Vortex86-DX3 dual core processor is 1GHz. The soldered 2GB (DDR3L, 1333) memory allows the use in rough industrial environment. A complete ISA bus and PCI interface make the PC/104 board an all-rounder and a perfect replacement of discontinued x86-based PC/104 boards. Serial bus interfaces are available via SM and I²C. The TDP of about 6 watts allows passive cooling. Dual display via CRT and 18/24bit single-channel LVDS is supported. The board has 2x Ethernet (10/100 and 10/100/1000 Mbit) ports, 4x USB 2.0, 2x COM, one SATA connector for HDD and M.2 socket. An absolute highlight is the soldered mass memory (option) with up to 64GB eMMC Flash, as well as an I/O interface GPIO with 4 in & 4 out lines.

Specifications

Order Info

Downloads

name	code	description	availability
PB-VORTEX-DX3	AB1-3G03	PB-Vortex-DX3 4GB eMMC, 1.0GHz, 512kB, 2GB	MP

Back to list
