PICO-6260

Intel® Apollo Lake Atom™ Processor based PICO-ITX embedded Board with DDR3L SDRAM, Gigabit Ethernet, HDMI, LVDS, mini-PCIe socket and 12V

Intel® Apollo Lake series processor
Up to 8GB DD3L-1866/1600 non-ECC SDRAM on one SODIMM slots
HDMI, and Dual channel 24bit LVDS
Mini-PCIe / mSATA ( Mini-PCIe slot), and M.2 Type E socket
2*COM ports(COM1 supports RS-232/422/485,COM2 supports RS-232)

We also provide additional features to our finished products if requested.
Contact us, for customized product package!
Get A Quote

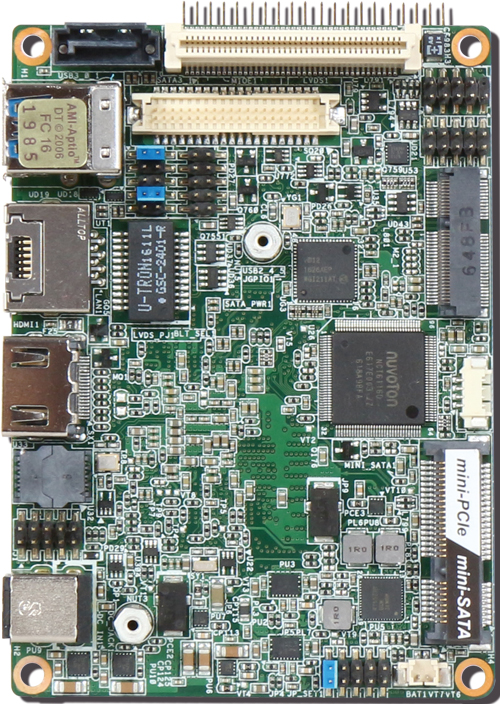

The PICO-6260 is a palm-sized fanless pico-ITX motherboard built with the latest 14 nm Intel® Pentium or Celeron® processor (codename: Apollo Lake SoC). Support for two USB 3.0 ports ensures fast data transmission with low-power consumption and support two com port to allow quick and flexible system expansions. Intel I211AT Gigabit Ethernet controllers provide dual Gigabit Ethernet LAN access via the one RJ45 ports. PICO-6260 can design their own unique systems for Panel PC, Kiosk and Digital Signage applications.

Specifications

CPU:	Intel Atom® x5-E3930 Processor (2 x 1.30 GHz, 2 MB L2, 6.5 W) Intel Atom® x5-E3940 Processor (4 x 1.60 GHz, 2 MB L2, 9.5 W) Intel Atom® x7-E3950 Processor (4 x 1.60 GHz, 2 MB L2, 12 W) Intel® Celeron® Processor N3350 (2 x 1.10 GHz, 2 MB L2, 6 W) Intel® Pentium® Processor N4200 (4 x 1.10 GHz, 2 MB L2, 6 W)
Standard:	Pico-ITX
Chipset:	SoC (System-On-Chip)
Memory:	Up to 8GB DDR3L 1333/1600/1866 MH/z SDRAM on one 204, pin SODIMM socket
Graphic Controller:	Intel® Gen 9 Graphics supports DirectX 12, OpenGL 4.2 / OpenCL 2.0, Video decode HW acceleration support for H.264, H.265, MPEG2, VC-1/WMV9, JPEG, VP8, and VP9
Graphic Interface:	LVDS: dual channel 24bit LVDS on board connector, up to 1920x1200; HDMI: on board connector, resolution up to 3840 x2160
Storage:	One SATA III port

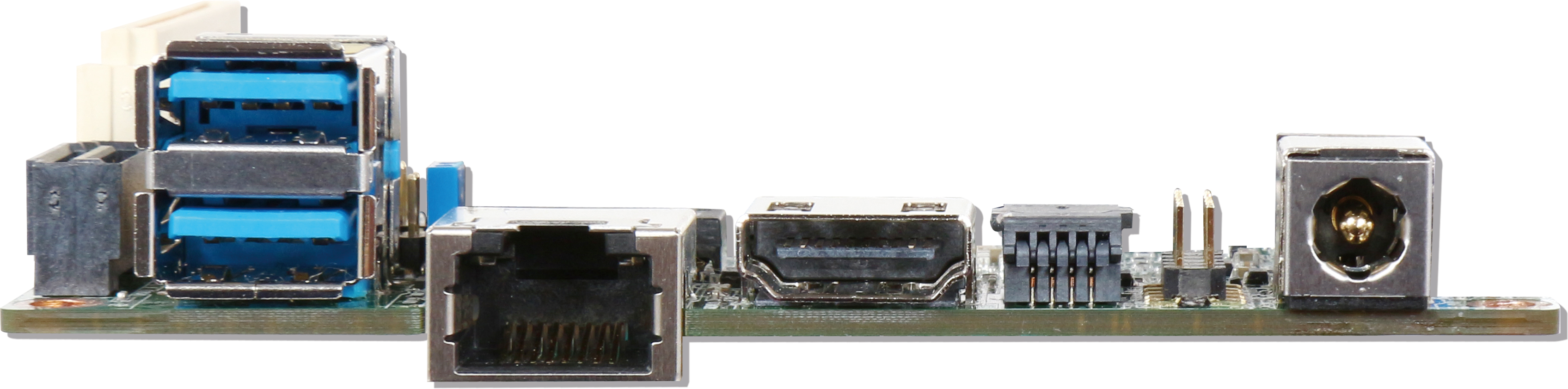

Ethernet:	Single Intel® I211AT GbE controller 1x RJ45 connectors on rear I/O
Expansion:	One mini-PCIe socket (support mSATA)
Bus Interface:	1x RS-232/422/485 with on board pin header, 1x RS-232 with on board pin header
Serial Interface:	Dual Intel® I211AT GbE controller, 1x RJ45 connectors on rear I/O
USB:	2x USB 3.0 ports on rear I/O, 2x USB 2.0 ports on board with pitch 2.0 header
Audio:	High Definition Audio integrated in Intel SoC. Supports Line-out on board pin header
Miscellaneous:	Programmable watchdog timer, time out period from 1 sec to 255 secs. GPIO: 8-bit configurable controlled by embedded controller
Firmware:	AMI UEFI BIOS
OS Support:	Windows 10 IOT Enterprise, Windows 10 IOT Core, Linux
Power Requirement:	DC 12V input
Operating Temperature:	0°C to +60°C
Storage Temperature:	-40°C to +85°C
Dimensions:	100x72 mm

Order Info

Downloads

name	code	description	availability
PICO-6260-N3350 w heat sink	tbd	PICO-6260, N3350 processor (2 Core, 1.1 GHz), 1xGbE, Audio, USB3.0; with heat sink	Q4/2017
PICO-6260-N3350 w/o heat sink	tbd	PICO-6260, N3350 processor (2 Core, 1.1 GHz), 1xGbE, Audio, USB3.0; NO Heat-sink	Q4/2017
PICO-6260-N3350, NO Heat-sink	tbd	PICO-6260, N3350, 1xGbE, Audio, USB3.0; NO Heat-sink	MP
PICO-6260-N3350, & Heat-sink	tbd	PICO-6260, N3350, 1xGbE, Audio, USB3.0; w. Heat-sink	MP
PICO-6260	tbd	Pico-ITX ESB, Intel	Q4/2017
