WEBS-13D1

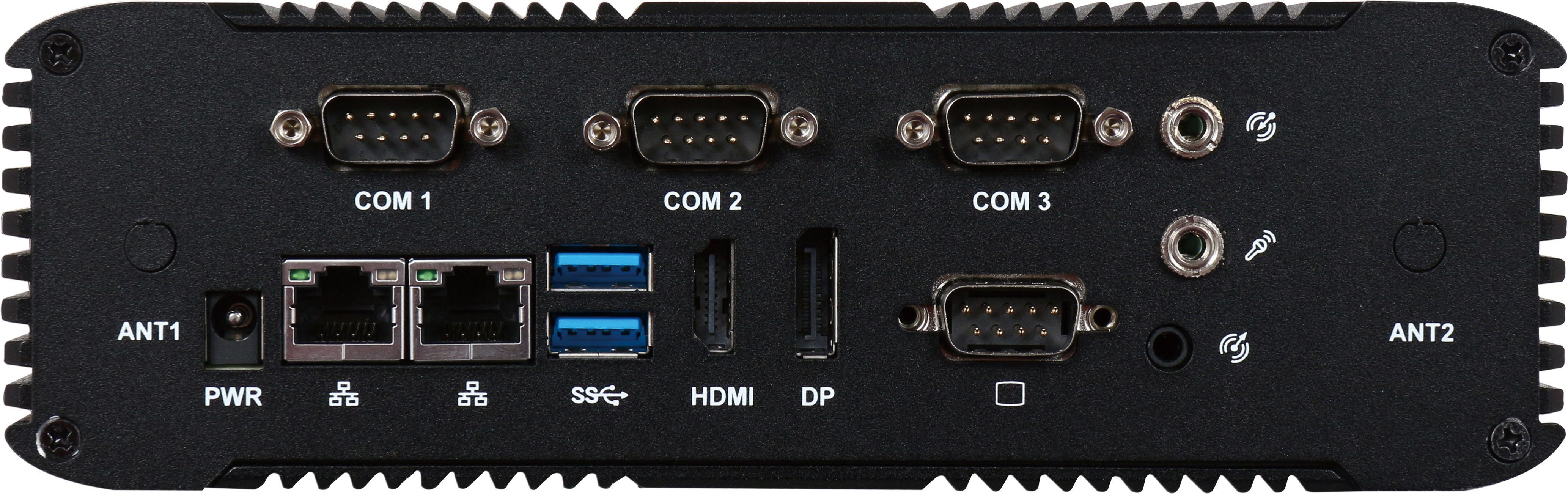

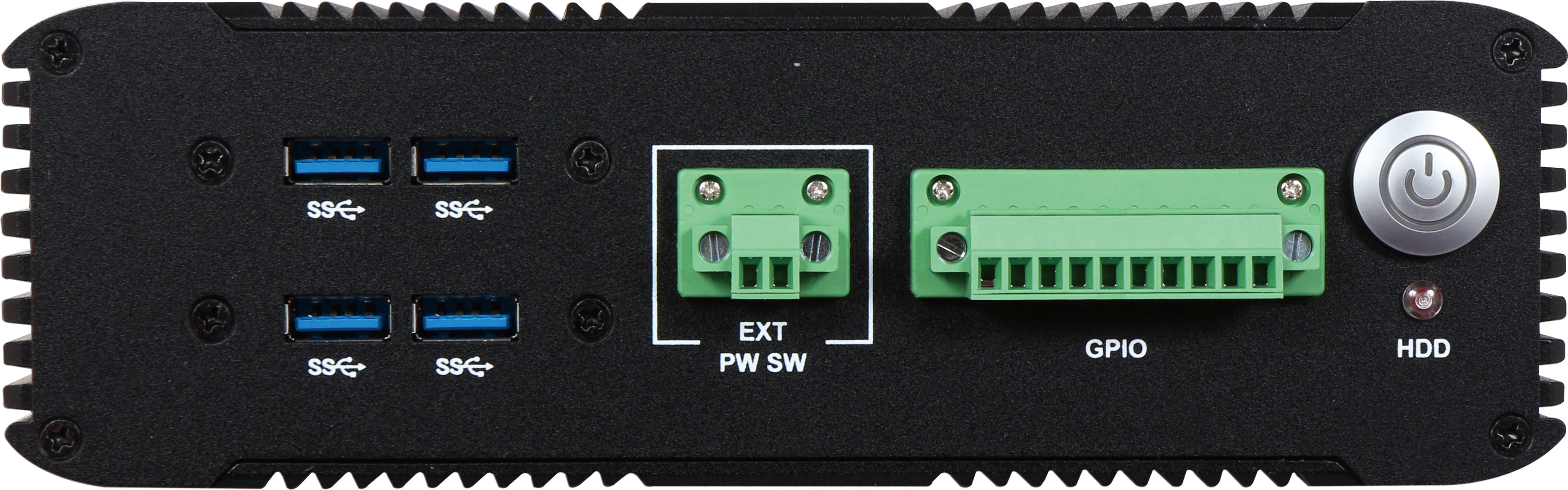

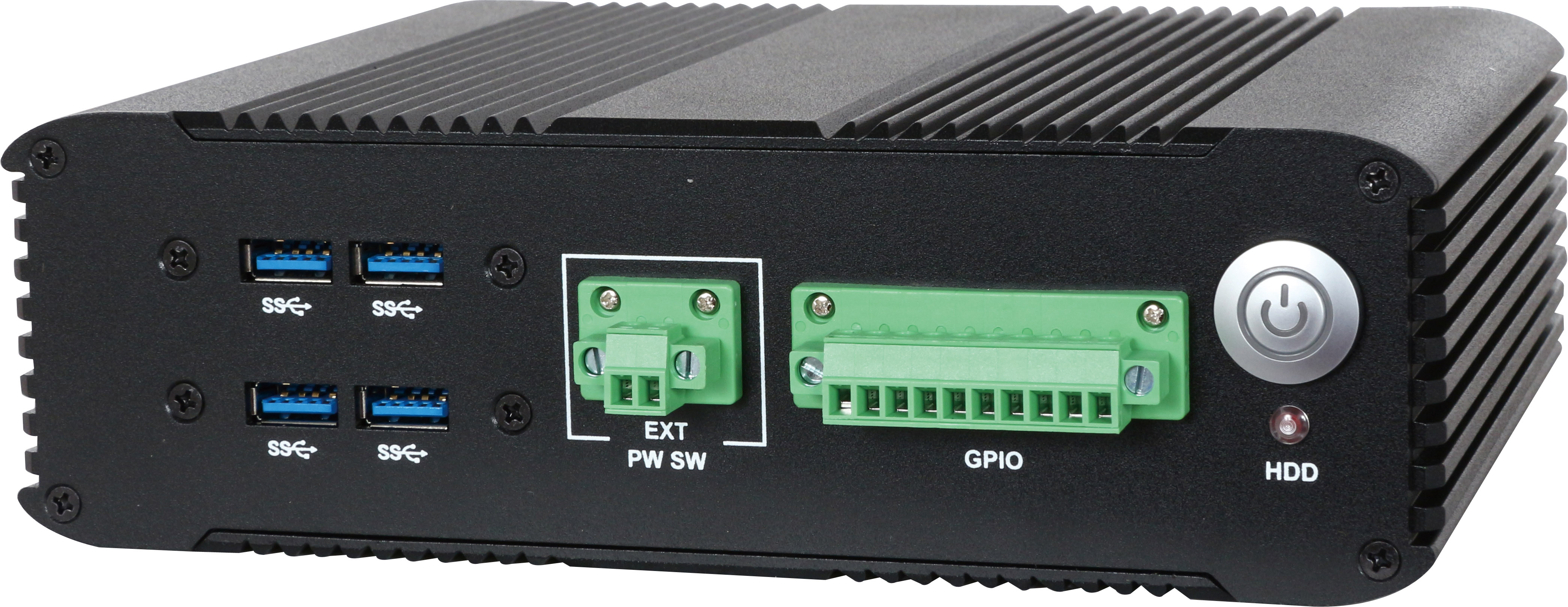

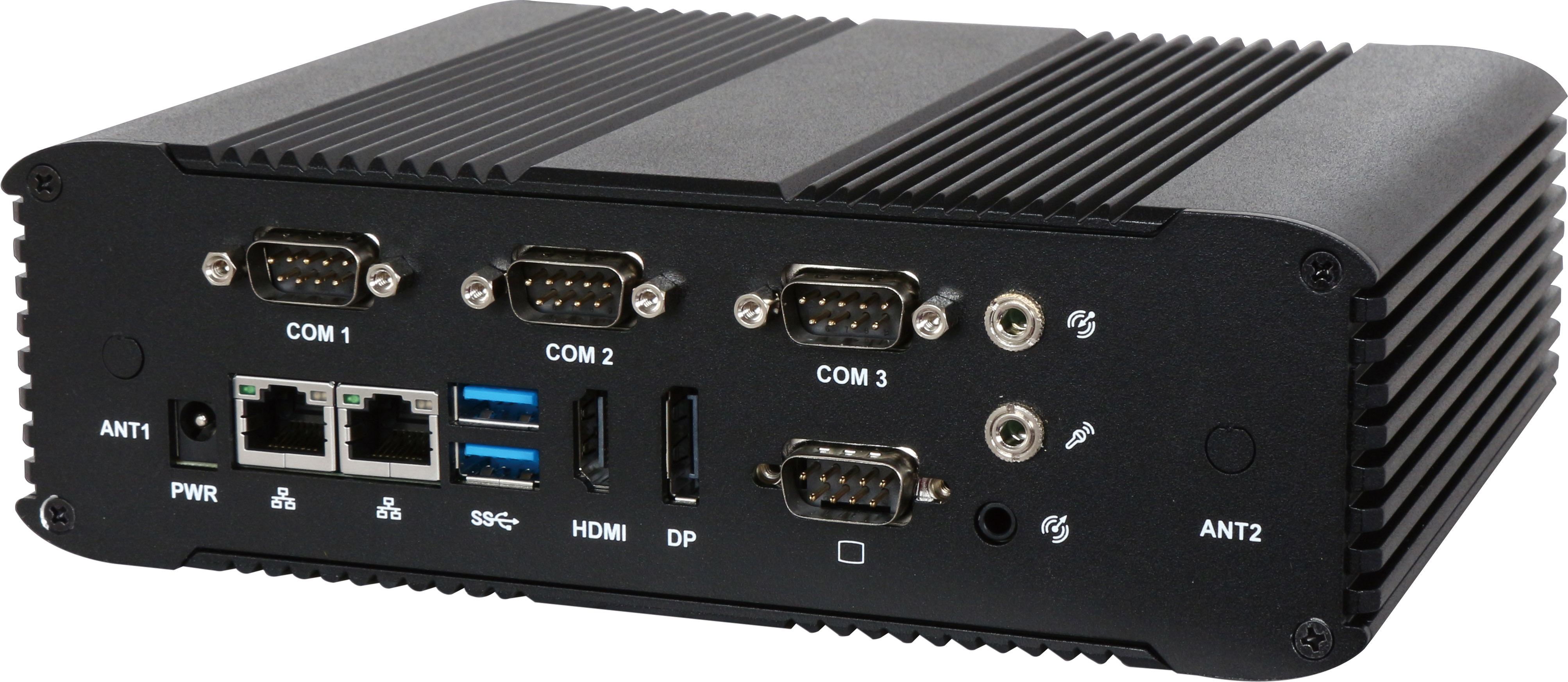

Embedded Rugged Fan-less System with Intel® Apollo Lake series processor based 3.5” ECX Board

Intel® Apollo Lake series processor
Up to 8GB DDR3L 1866/1600 SODIMM
Triple displays including DP and HDMI
Mini-PCIe / mSATA (Dual Mini-PCIe slot)
4xCOM ports (1x RS-232/422/485)
2xAntenna hole for WiFi or 3G/GPS module to use

We also provide additional features to our finished products if requested.
Contact us, for customized product package!
Get A Quote

The WEBS-13D1 adopts Intel® Atom® processor E3900 series and takes its advantages to develop Portwell Design of that the CPU/chipset on the backside of the board is good for system thermal design. The perfect thermal solution can easily solve the thermal of CPU. The external power switch is an another plus factor. The WEBS-13D1 is a great platform for kiosk, digital signage, and automation applications.

Specifications

CPU:	Intel Atom® x5-E3930 Processor (2 x 1.30 GHz, 2 MB L2, 6.5 W) Intel Atom® x5-E3940 Processor (4 x 1.60 GHz, 2 MB L2, 9.5 W) Intel Atom® x7-E3950 Processor (4 x 1.60 GHz, 2 MB L2, 12 W) Intel® Celeron® Processor N3350 (2 x 1.10 GHz, 2 MB L2, 6 W) Intel® Pentium® Processor N4200 (4 x 1.10 GHz, 2 MB L2, 6 W)
Technology:	x86
Standard:	3.5"
Chipset:	SoC (System-On-Chip)
Memory:	1x Up to 8GB DDR3L 1333/1600/1866 MHz SO-DIMM
Graphic Controller:	Intel® HD Graphics 500/505
Graphic Interface:	DP (4096x216), HDMI (3840 × 2160), dual channel 24-bit LVDS (1920x1200)
Storage:	1x SATA III port, 1x mSATA socket (mini-PCIe)
Ethernet:	Dual Intel® I210IT GbE controller - 2x RJ45 connectors on rear I/ODual Intel® I210IT GbE controller - 2x RJ45 connectors on rear I/ODual Intel® I210IT GbE controller - 2x RJ45 connectors on rear I/O
Expansion:	2x Mini-PCIe socket (Full size support mSATA / Half size support WiFi/BT)
Bus Interface:	LPC, SPI, SMBus
Serial Interface:	3x RS232, 1 x RS232/422/485
USB:	4x USB 3.0 on fron t I/O, 2x USB 3.0 on rear i/O
Audio:	- High Definition Audio integrated in Intel SoC, Realtek ALC892 HDA codec, Audio jack on rear I/O with Line-out and support Line-in, Mic-in on board pin header
Security:	optional TPM 2.0 onboard
Miscellaneous:	GPIO 8bit,Watchdog Timer,HW monitoring: temperature & voltage
Firmware:	AMI UEFI BIOS
Power Requirement:	DC 12V~24V
Power:	depends on used CPU
Operating Temperature:	-20ºC~60ºC
Storage Temperature:	-40ºC~85ºC
Mounting:	Desk, Wall/Panel mounting
Dimensions:	200x150x80 mm
Weight:	2Kg
Shock:	50G, 11 msec, IEC 60068-2-27
Vibration:	5Grms/10-500Hz, IEC 60068-2-06
