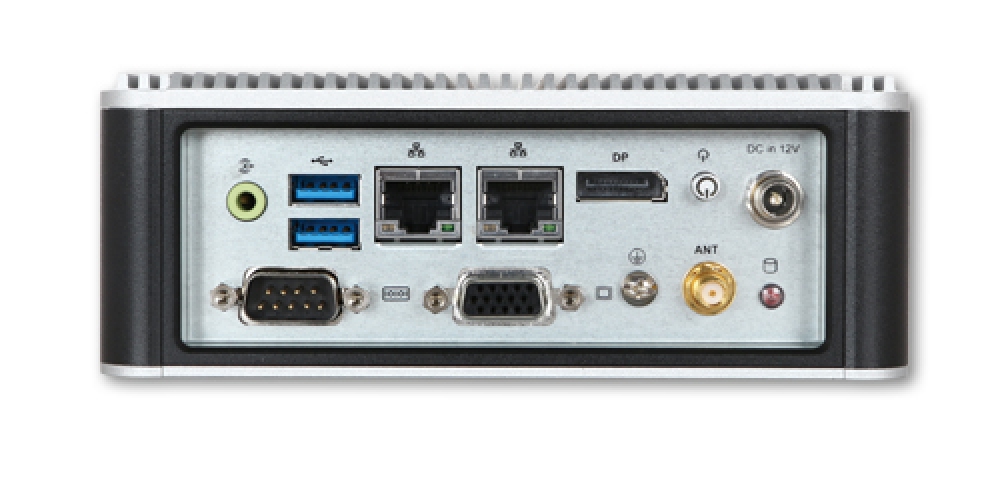

Portwell - WEBS-2190

CPU:	Intel Atom® Processor E3815 (1 x 1.46 GHz, 512 KB L2, 5 W) Intel Atom® Processor E3827 (2 x 1.75 GHz, 1 MB L2, 8 W) Intel Atom® Processor E3845 (4 x 1.91 GHz, 2 MB L2, 10 W)
Technology:	x86
Standard:	Nano-ITX
Chipset:	SoC (System-On-Chip)
Memory:	Up to 4GB DDR3L
Graphic Controller:	Gen 7
Graphic Interface:	VGA, DP
Storage:	2.5" SATA HDD Micro-SD
Ethernet:	2x Gigabit Ethernet (Intel® I210IT)2x Gigabit Ethernet (Intel® I210IT)2x Gigabit Ethernet (Intel® I210IT)
Expansion:	Half-Size mini PCle
Serial Interface:	1x RS232/422/485
USB:	2x USB 3.0
Audio:	Line-out
Miscellaneous:	1x Antenna hole for WiFi or 3G/GPS module
Firmware:	Phoenix BIOS (SPI ROM)
Power Requirement:	12V DC
Operating Temperature:	-25°C to 60°C
Storage Temperature:	-40°C to 80°C
Mounting:	Desk, Wall/Panel, and DIN Rail mounting
Dimensions:	150x150x53 mm
Weight:	1,3kg
Shock:	50G, 11msec, IEC 60068-2-27
Vibration:	5Grms/10~500Hz, IEC 60068-2-6

Toshiba 2.5" 320GB/5400rpm HDD. SATA. 8MB.	HDD
64GB.SATA III 2.5" SSD. TS46EMM . Wide-Temp.	SSD
128GB.SATA III 2.5" SSD. TS46EMM . Wide-Temp.	SSD
2GB DDR3L/1333 SO-DIMM DRAM Module. 256x8. 30mi 1.35V	DRAM
DDR3L SO-DIMM DRAM Module 4GB DDR3-1600 1.35V , 512x8, Hynix	DRAM
4GB DDR3L/1333 SO-DIMM DRAM Module. 256x8. 30mi 1.35V	DRAM
8GB DDR3L/1600 SO-DIMM DRAM Module. 512x8. 30mi 1.35V	DRAM
DDR3WL SO-DIMM DRAM Module 2GB DDR3-1333 (30mi) 1.35V , 256x8, Micron, (Wide Temp.)	DRAM
DDR3WL SO-DIMM DRAM Module 4GB DDR3-1333 (30mi) 1.35V , 256x8, Micron. (Wide Temp.)	DRAM
32GB.SATA III 2.5" SSD. TS46EMM . Wide-Temp.	SSD
512GB. SATA III. 2.5 Inch SSD.	SSD
Toshiba 2.5" 500GB SATA 5400rpm HDD. 8MB H:7mm.	HDD
Toshiba 2.5" 1TB/5400rpm.HDD.8MB.SATA.	HDD
Toshiba 2.5" 320GB SATA 7200rpm HDD. 16MB H:7mm.	HDD
Toshiba 2.5" 500GB SATA 7200rpm HDD. 16MB H:7mm.	HDD
32GB. SATA III. 2.5 Inch SSD.	SSD
64GB. SATA III. 2.5 Inch SSD.	SSD
128GB. SATA III. 2.5 Inch SSD.	SSD
256GB. SATA III. 2.5 Inch SSD.	SSD
DDR3WL SO-DIMM DRAM Module 8GB DDR3-1600 (30mi) 1.35V , 512x8, Micron. (Wide Temp.)	DRAM

name	code	description	availability
WEBS-2190	AS5-3367	Nano-ITX ESB, Intel ATOM E3827 1.75GHz Dual Core, DDR3L SDRAM socket,VGA, 50W AC/DC converter external, Please add memory on SO-DIMM socket	MP
