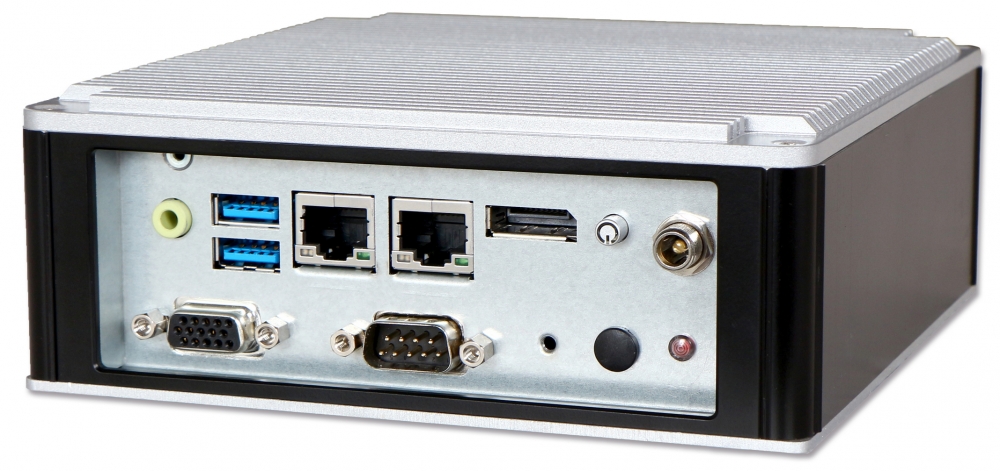

WEBS-21D0

Embedded rugged fan-less system with Intel Atom E3900 and N Series based Nano-ITX board

Small and Exquisite fan-less design
Intel® Apollo Lake SoC Platform
Up to 8GB DRR3L on one 204-pin SO-DIMM
1x 2.5" SATA HDD/SSD, 1x mSATA, 1x Micro SD
1x M.2 socket (type E)
IP40 Rating
OP Vibration: 5Grms/10~500Hz

We also provide additional features to our finished products if requested.
Contact us, for customized product package!
Get A Quote

The WEBS-21D0 builds on Intel® Apollo Lake SoC and takes advantage of Intel Atom® Dual/Quad-Core™ E3900 Series processor technologies, especially its vastly superior Quad-Core™ processing power and capability. The cost-effective CPU with high performance and low power consumption is of great use to build up a compact system, WEBS-21D0. It supports a wide temperature from -25°C to 60°C for fan-less applications in harsh environment, such as POS, kiosk, digital signage, transportation and automation.

Specifications

CPU:	Intel Atom® x5-E3930 Processor (2 x 1.30 GHz, 2 MB L2, 6.5 W) Intel Atom® x5-E3940 Processor (4 x 1.60 GHz, 2 MB L2, 9.5 W) Intel Atom® x7-E3950 Processor (4 x 1.60 GHz, 2 MB L2, 12 W) Intel® Celeron® Processor N3350 (2 x 1.10 GHz, 2 MB L2, 6 W) Intel® Pentium® Processor N4200 (4 x 1.10 GHz, 2 MB L2, 6 W)
Technology:	x86
Standard:	Nano-ITX
Chipset:	SoC (System-On-Chip)
Memory:	Up to 8GB DDR3L non ECC
Graphic Controller:	Intel® iGFX HD Graphics Gen9
Graphic Interface:	DP (4096 x 2160), VGA (1920x1200), 18/24bit LVDS (1920x1200) on rear IO
Storage:	1x 2.5" SATA HDD/SSD, 1x mSATA, 1x Micro SD
Ethernet:	2x Gigabit Ethernet (Intel® I210IT)2x Gigabit Ethernet (Intel® I210IT)2x Gigabit Ethernet (Intel® I210IT)
Expansion:	- One M.2 socket (Type E)
Bus Interface:	1x Mini PCIe™ full size (PCIe, mSATA)
Serial Interface:	1x RS-232/422/485 (selectable by BIOS)
USB:	2x USB 3.0
Audio:	Line-out (ALC892)
Miscellaneous:	realtive humidity - 95%@40ºC, non-condensing
Firmware:	AMI UEFI BIOS
Power Requirement:	DC 12V - 24V
Power:	depends on used CPU
Operating Temperature:	-20ºC~60ºC
Storage Temperature:	-40ºC~85ºC
Mounting:	Wall, Panel/VESA® and DIN RAIL mountingWall, Panel/VESA® and DIN RAIL mountingWall, Panel/VESA® and DIN RAIL mounting
Dimensions:	150x150x60 mm
Weight:	1.3Kg
Shock:	50G, 11msec, IEC 60068-2-27
Vibration:	5Grms/10~500Hz, IEC 60068-2-6
