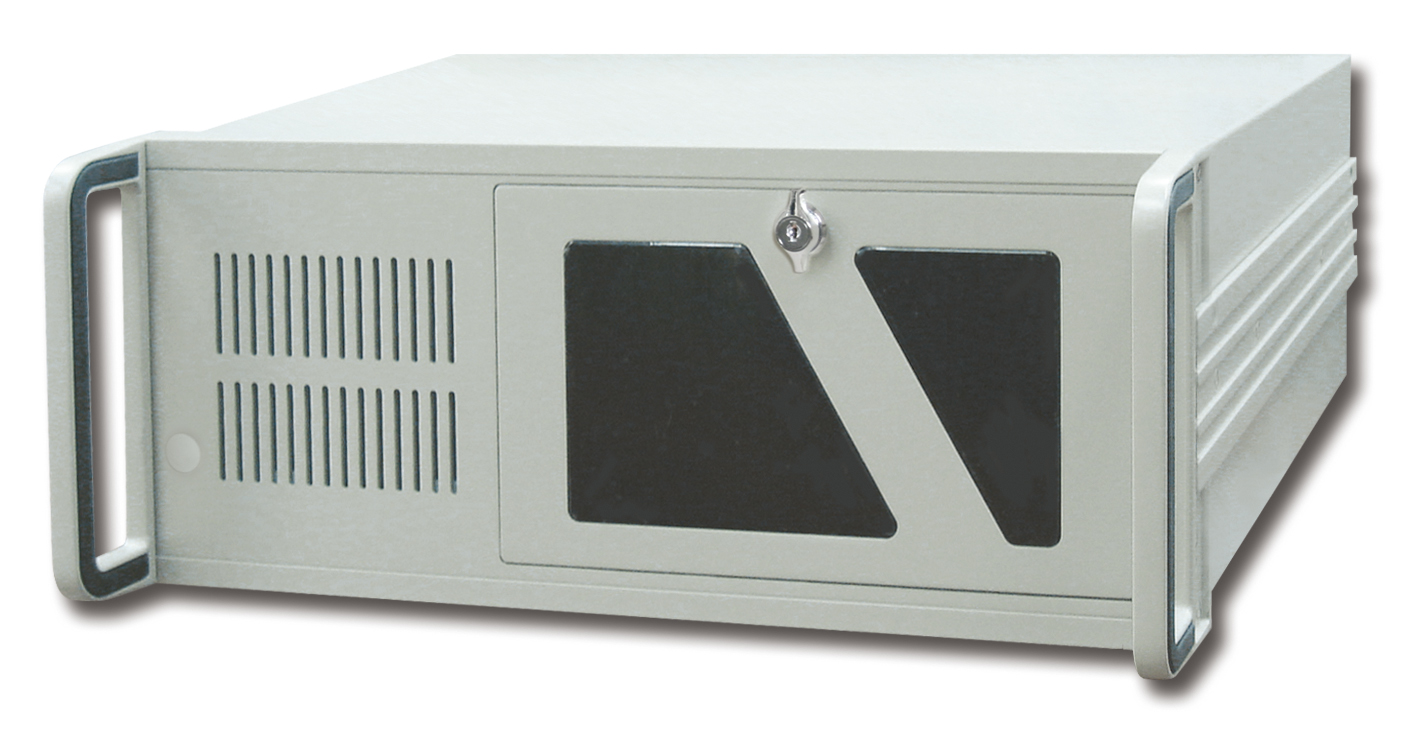

RPC-500NC

RPC-500NC/L is designed for PICMG SBC/ SHB and RPC-500NC/L-MX for ATX mother boards which has maximum 14-slot expansion for PICMG backplane. It also supports PSU in PS/2 form factor that makes RPC- 500NC/L the best selling 4U Rack-mount chassis for CTI, Industrial, Science, Engineering and Server applications.

5.25” x3 + 3.5” x2 drive bays for RAID 0, 1, 5 & CD-ROM
Two ball-bearing cooling fans for better ventilation
Traditional rack-mount handles
Two USB ports on the control panel
PS/2 redundant power supply installable
One PS/2 K/B connector cap included
Traditional rack-mount handles

We also provide additional features to our finished products if requested.
Contact us, for customized product package!
Get A Quote

RPC-500NC/L is designed for PICMG SBC/SHB and RPC-500NC/L-MX for ATX motherboards which has maximum 14-slot expansion for PICMG backplane. It also supports PSU in PS/2 form factor that makes RPC-500NC/L the best selling 4U Rack-mount chassis for CTI, Industrial, Science, Engineering

and Server applications.

Specifications

Order Info

Downloads

Related Products

name	code	description	availability
RPC-500NC	AC1-2868	19" Rack Mount, 4U, Light Grey, w/14-slot Rear Panel	MP
RPC-500NC-MX	AC1-2869	19" Rack Mount, 4U, Light Grey, w/M/B Rear Panel	MP
RPC-500NC/BLACK	AC1-2893	19" Rack Mount, 4U, Black, w/14-slot Rear Panel
RPC-500NC-MX/BLACK	AC1-2894	19" Rack Mount, 4U, Black, w/M/B Rear Panel	MP

Back to list

Construction:	Heavy-duty steel with aluminum front panel
Drive_Bay_internal:	1x 3.5" HDD
Card_Retainer:	Two locations for one card retainer
Air Filter:	One replaceable filter
Cooling Fan:	One 12cm and one 8cm ball-bearing cooling fans
Indicator:	1x Power On/Off, 1x HDD
Switch:	1x Power On/Off, 1x System reset, 1x K/B lock
Connector:	2x USB ports on the front panel
Standard Color:	Beige, Black
Dimension:	"RPC-500NC: 482 x 450 x 177 mm RPC-500L: 482 x 515 x 177 mm"
Weight:	"RPC-500NC: Net: 14 kg; Gross: 15 kg RPC-500L: Net: 17.5 kg; Gross: 18.5 kg"
Backplane:	"PBPE-13A8: 14-slot [PCIe (4), PCI (8), PCI-X (0)] active PCIMG 1.3 backplane PBPE-13A4: 14-slot [PCIe (8), PCI (4), PCI-X (0)] active PCIMG 1.3 backplane PBPE-12A9: 14-slot [PCIe (2), PCI (9), PCI-X (0)] active PCIMG 1.3 backplane PBPE-12P4: 14-slot [PCIe (8), PCI (4), PCI-X (0)] PCIMG 1.3 backplane PBPE-11A3: 14-slot [PCIe (8), PCI (3), PCI-X (0)] active PCIMG 1.3 backplane" PBPE-12AA64: 14-slot [PCIe (1), PCI (2), PCI-X (8)] active PCIMG 1.3 backplane PBPE-14AD64: 14-slot [PCIe (2), PCI (3), PCI-X (8)] active PCIMG 1.3 backplane
Maximum_output:	500W active PFC
Output_Voltage_Current:	+5V@12A; +12V1@18A; +12V2@18A; +3.3V@18A; -12V@0.3A,+5Vsb@2.5A
Input Voltage:	90V ~ 264V AC, full range
Input Frequency:	50 ~ 60Hz
Input Current:	8A@115V, 8A@230V
Efficiency:	> 80%
MTBF:	100,000 hrs
EMI_Safety_Approval:	UL, TUV, CE, FCC, CB, VCCI, 80PLUS
Relative Humidity:	"Operating: 5°C ~ 50°C, 20% ~ 85%RH Storage: -40°C ~ 70°C, 10% ~ 95%RH"
Operating Temperature:	0°C ~ 55°C
Storage Temperature:	0°C to 70°C
Relative Humidity:	5% ~ 95°%, non-condensing
Vibration:	"5~7 Hz: 0.5"" double amplitude displacement 7~2000 Hz: 1.5g acceleration"
Drive_Bay_external:	3x 5.25", 1x 3.5" FDD
