Portwell - ROBO-6912VG2AR

Products / Industrial PC / Single Board Computer / PICMG 1.3 Half size

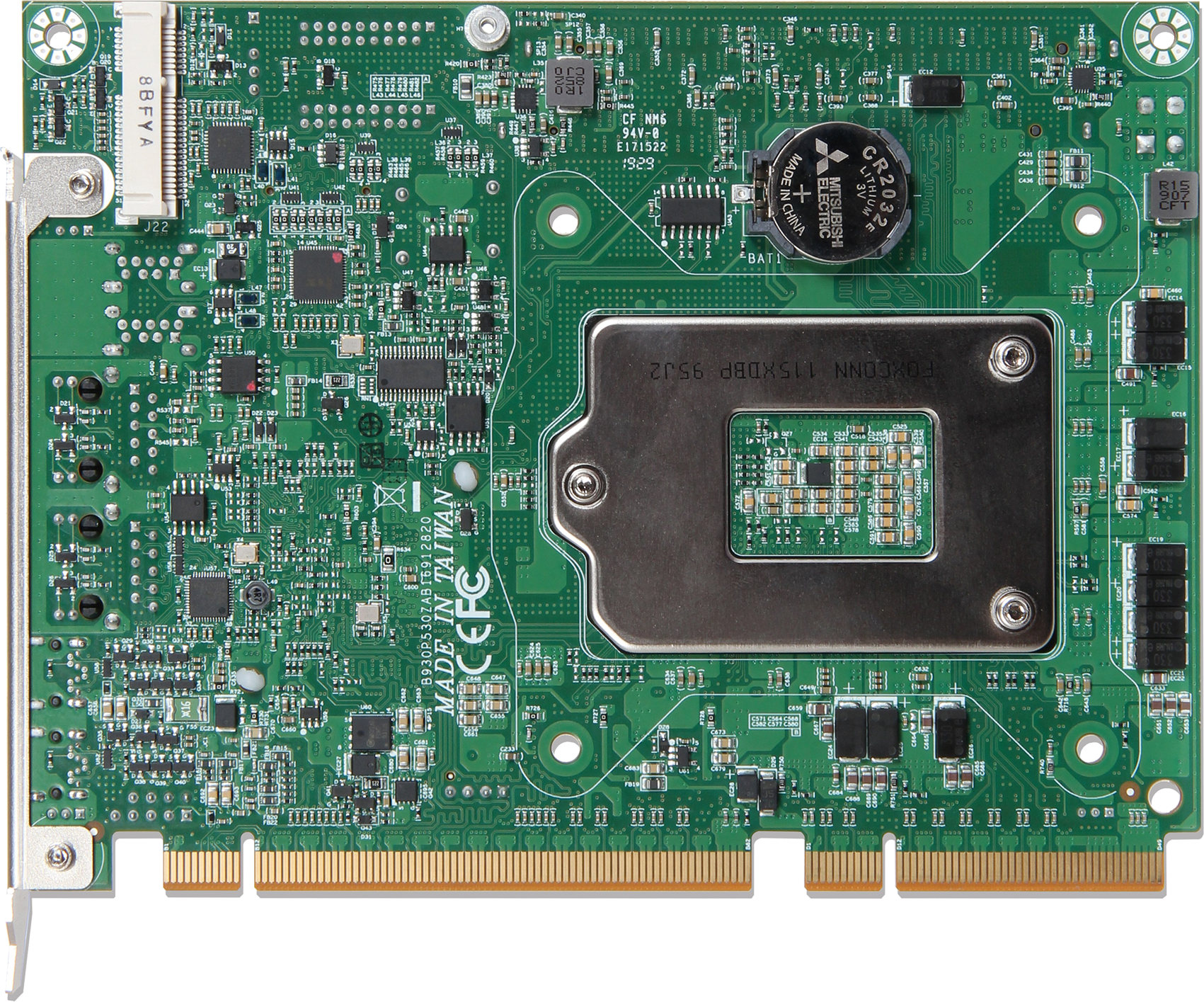

ROBO-6912VG2AR

Intel Core i3/i5/i7/Pentium/Celeron/Xeon E Family processor based on PICMG 1.3 half size SBC

Intel® 8th/9th Gen Coffee Lake-S processor in LGA1151
Up tp 64GB DDR4 2666MT7s ECC or non-ECC SODIMM on two sockets
High speed dual Gigabit Ethernet and high bandwidth I/O interface
Rich I/O connections such as serial port, USB ports and SATA ports, supports RAID 0, 1, 5
On board TPM 2.0

We also provide additional features to our finished products if requested.
Contact us, for customized product package!
Get A Quote

ROBO-6912VG2AR is based on Intel® C246 or Q370 chipset to support Intel®8th/9thGen workstation and desktop processors. Built with flexible PCI express expansions, ROBO-6912VG2AR is suitable for Medical, Industrial Automation, and Digital Signage applications.

Specifications

CPU:	Intel® Core™ i3-9100E (4 x 3.10 GHz / 3.70 GHz, 6 MB, 65 W) Intel® Core™ i3-9100TE (4 x 2.20 GHz / 3.20 GHz, 6 MB, 35 W) Intel® Core™ i5-9500E (6 x 3.00 GHz / 4.20 GHz, 9 MB, 65 W) Intel® Core™ i5-9500TE (6 x 2.20 GHz / 3.60 GHz, 9 MB, 35 W) Intel® Core™ i7-9700E (8 x 2.60 GHz / 4.40 GHz, 12 MB, 65 W) Intel® Core™ i7-9700T (8 x 1.80 GHz / 3.80 GHz, 12 MB, 35 W) Intel® Xeon® E-2226GE (6 x 3.40 GHz / 4.60GHz, 12 MB, 80 W) Intel® Xeon® E-2278GE (8 x 3.30 GHz / 4.70 GHz, 16 MB, 80 W) Intel® Xeon® E-2278GEL (8 x 2.00 GHz / 3.90 GHz, 16 MB, 35 W)
Technology:	x86
USB:	4x USB3.0 ports 2x USB3.1 Gen 2 ports on bracket
Audio:	Realtek ALC888S-VD2-GR HDA codec, 7.1 channels one on-board audio pin header
Miscellaneous:	Watchdog - programmable via S/W from 0.5 sec. to 254.5 sec
Firmware:	AMI UEFI BIOS (SPI ROM)
Power Requirement:	Typical: +12V, +5VSB, Supports ATX mode
Operating Temperature:	0°C~60°C
Storage Temperature:	-20°C~80°C
Dimensions:	167.64x126.39 mm
Serial Interface:	1x RS232/422/485 selectable by bios
Expansion:	1x PCIe x16 or 2x PCIe x8 or 1x PCIe x8 + 2x PCIe x4 by jumper setting or BIOS (Gen 3 up to 8.0 GT/s) 1x PCIe x4 or 4x PCIe x1 by different BIOS support (Gen 3 up to 8.0 GT/s)
Standard:	PICMG 1.3
Chipset:	Intel® C246 / Q370
Memory:	Up to 64GB DDR4 2666 SDRAM on two 260-pin ECC or non ECC SODIMM sockets, ECC on C246, non-ECC on Q370
Graphic Controller:	Intel® Coffee-Lake-S processors integrated graphics engine
Graphic Interface:	DVI-D on board: up to 1920x1600 @ 60Hz mini DP: two ports on bracket up to 4096x2304 @ 60Hz
Storage:	2x SATAIII ports 1x mSATA socket Supports RAID 0, 1, 5 and Intel® Optane™ memory
Ethernet:	Intel® WGI219LM + WGI210AT Gigabit Ethernet controller Dual 10BASE-T / 100BASE-TX / 1000BASE-T Ethernet Dual RJ-45 connector with two LED indicators
MTBF:	Over 100,000 hours at 40°C
Miscellaneous:	Super IO (Embedded Controller) IT5121E-I
