Portwell - ROBO-8116G2AR

Products / Industrial PC / Single Board Computer / PICMG 1.3

ROBO-8116G2AR

13th/12th Gen Intel® Core™ processors (formerly Raptor Lake-S/Alder Lake-S) based PICMG 1.3 SBC with DDR5 SDRAM, PCIe Gen 5, Dual 2.5GbE, Multiple Displays, Audio and USB

Supports Intel® 13th/ 12th Generation Core processors Family in LGA 1700 package
Delivers up to 64GB maximum DDR5 4800 ECC/Non-ECC SODIMM on two sockets

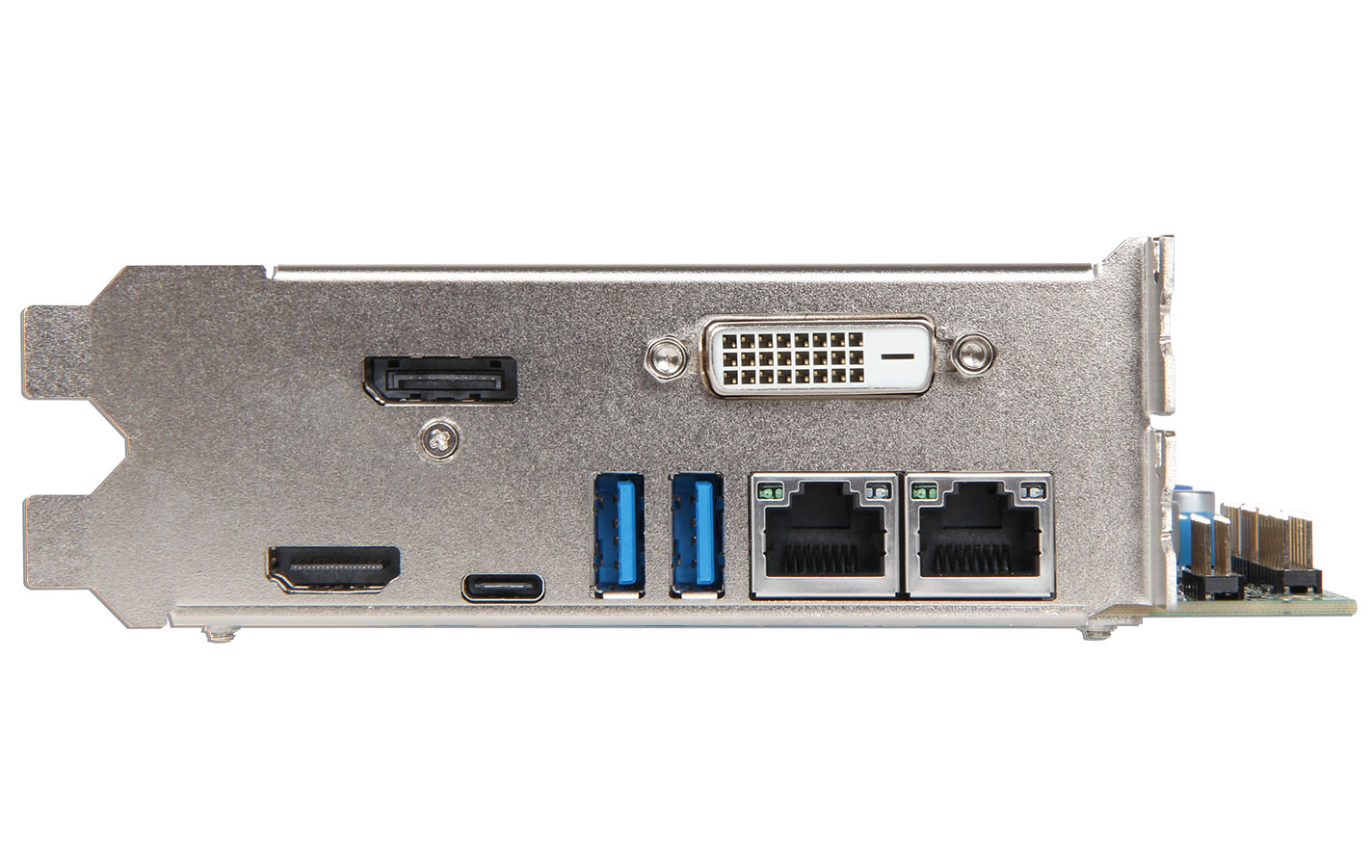

Supports multiple display by DVI-D,DP and HDMI
High speed dual Gigabit Ethernet based on PCI express x 1, high bandwidth I/O interface
Support two USB 3.2(Gen2) & one USB 3.2(Gen2 x2) type-C port on bracket
Support on board TPM2.0

We also provide additional features to our finished products if requested.
Contact us, for customized product package!
Get A Quote

ROBO-8116G2AR is based on Intel^® 600 series chipset and workstation processors. Built with flexible PCI express expansions, ROBO-8116G2AR is suitable for Medical, Industrial automation, and Digital Signage application.

Specifications

Downloads

Related Products

Back to list

CPU:	Intel® Core™ i9-12900E Processor (16 x 2.30 GHz / 5.00 GHz, 30 MB Intel® Smart Cache Intel® Core™ i9-12900TE Processor (16 x 1.10 GHz / 4.80 GHz, 30 MB Intel® Smart Cache Intel® Core™ i7-12700TE Processor (12 x 1.40 GHz / 4.60 GHz, 25 MB Intel® Smart Cache Intel® Core™ i7-12700E Processor (12 x 2.10 GHz / 4.80 GHz, 25 MB Intel® Smart Cache Intel® Core™ i3-12100TE Processor (4 x 2.10 GHz / 4.00 GHz, 12 MB Intel® Smart Cache Intel® Core™ i3-12100E Processor (4 x 3.20 GHz / 4.20 GHz, 12 MB Intel® Smart Cache Intel® Core™ i3-12100 Processor (4 x 3.30 GHz / 4.30 GHz, 12 MB Intel® Smart Cache Intel® Core™ i5-12400 Processor (6 x 2.50 GHz / 4.40 GHz, 18 MB Intel® Smart Cache Intel® Core™ i7-7600U Processor (2 x 2.80 GHz / 3.90 GHz, 4 MB SmartCache, 15 W) Intel® Core™ i7-12700 Processor (12 x 2.10 GHz / 4.90 GHz, 25 MB Intel® Smart Cache Intel® Core™ i9-12900 Processor (16 x 2.40 GHz / 5.10 GHz, 30 MB Intel® Smart Cache Intel® Pentium® Gold G7400E Processor (2 x 3.60 GHz, 6 MB Intel® Smart Cache Intel® Pentium® Gold G7400TE Processor (2 x 3.00 GHz, 6 MB Intel® Smart Cache Intel® Pentium® Gold G7400 Processor (2 x 3.70 GHz, 6 MB Intel® Smart Cache Intel® Pentium® Gold G7400T Processor (2 x 3.10 GHz, 6 MB Intel® Smart Cache Intel® Core™ i7-13700 Processor (16 x 2.10 GHz / 5.20 GHz, 30 MB Intel® Smart Cache Intel® Core™ i7-13700T Processor (16 x 1.40 GHz / 4.90 GHz, 30 MB Intel® Smart Cache Intel® Core™ i5-13400 Processor (10 x 2.50 GHz / 4.60 GHz, 20 MB Intel® Smart Cache Intel® Core™ i3-13100 Processor (4 x 3.40 GHz / 4.50 GHz, 12 MB Intel® Smart Cache Intel® Core™ i9-13900 Processor (24 x 2.00 GHz / 5.60 GHz, 36 MB Intel® Smart Cache Intel® Core™ i3-13100T Processor (4 x 2.50 GHz / 4.20 GHz, 12 MB Intel® Smart Cache Intel® Core™ i5-13500 Processor (14 x 2.50 GHz / 4.80 GHz, 24 MB Intel® Smart Cache Intel® Celeron® Processor 7305L (5 x 1.10 GHz / 1.10 GHz, 8 MB Intel® Smart Cache, 15 W) Intel® Core™ i3-13100TE Processor (4 x 2.40 GHz / 4.10 GHz, 12 MB Intel® Smart Cache, 35 W) Intel® Core™ i5-13400E Processor (10 x 2.40 GHz / 4.60 GHz, 20 MB Intel® Smart Cache, 65 W) Intel® Core™ i9-13900TE Processor (24 x 1.00 GHz / 5.00 GHz, 36 MB Intel® Smart Cache, 35 W) Intel® Core™ i3-13100E Processor (4 x 3.30 GHz / 4.40 GHz, 12 MB Intel® Smart Cache, 60 W) Intel® Core™ i7-13700E Processor (16 x 1.90 GHz / 5.10 GHz, 30 MB Intel® Smart Cache, 65 W) Intel® Core™ i5-12500E Processor (6 x 2.90 GHz / 4.50 GHz, 18 MB Intel® Smart Cache Intel® Core™ i5-12500 Processor (6 x 3.00 GHz / 4.60 GHz, 18 MB Intel® Smart Cache Intel® Celeron® Processor G6900 (2 x 2.80 GHz, 4 MB Intel® Smart Cache Intel® Celeron® Processor G6900T (2 x 2.80 GHz, 4 MB Intel® Smart Cache Intel® Celeron® Processor G6900TE (2 x 2.40 GHz, 4 MB Intel® Smart Cache Intel® Celeron® Processor G6900E (2 x 3.00 GHz, 4 MB Intel® Smart Cache
Chipset:	Intel® R680E / Q670E
Firmware:	AMI UEFI BIOS
Memory:	2 x DDR5 ECC/Non-ECC DIMM up to 64GB
Storage:	4x SATA III 1x, M.2 Type M 2280
Form Factor:	PICMG1.3
Expansion:	From CPU: 1x PCIe x16(Gen5) or 2x PCIe x8(Gen5) and 1x PCe x4(Gen4) From PCH: 1x PCIe x4 or 4x PCIe x1 by different bios support
Audio:	Intel® PCH built-in High Definition Audio up to 192-kHz 32-bit Realtek ALC888S HDA codec, 7.1 channels one on board audio pin header
Ethernet:	2x Intel® WGI225LM Gigabit Ethernet controller 2x 10BASE-T / 100BASE-TX / 1000BASE-T / 2500BASE-T Ethernet
Serial Interface:	2x RS-232 ports 2x RS-232/422/485 ports selectable LPC to COM port IC: Fintek F81216DG
USB:	4x USB 2.0 ports (through backplane) 2x USB 3.2(Gen1) ports on board 2x USB 3.2(Gen2) ports on bracket 1x USB 3.2(Gen2 x2) type-C port on bracket
Expansion:	GPIO 8-bit configurable controlled by embedded controller
Graphic Interface:	Triple independent displays by VGA on bracket: Resolution up to 1920x1200 @ 60Hz DVI-I on bracket: up to 1920x1200 @ 60Hz (VGA + DVI-D on bracket by DVI-I port) HDMI on board: up to 4096x2160 @ 30Hz
