- Intel Atom C3000 Series (Denverton-NS Refresh, 2C/4C)
- Intel QAT support (Crypto acceleration)
- 1 x DDR4 SO-DIMM (ECC support, max, 32 GB)

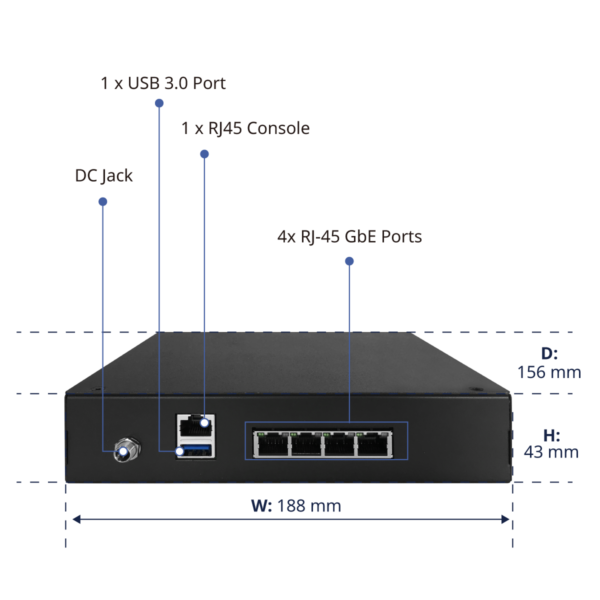

- 4 x GbE RJ45 ports

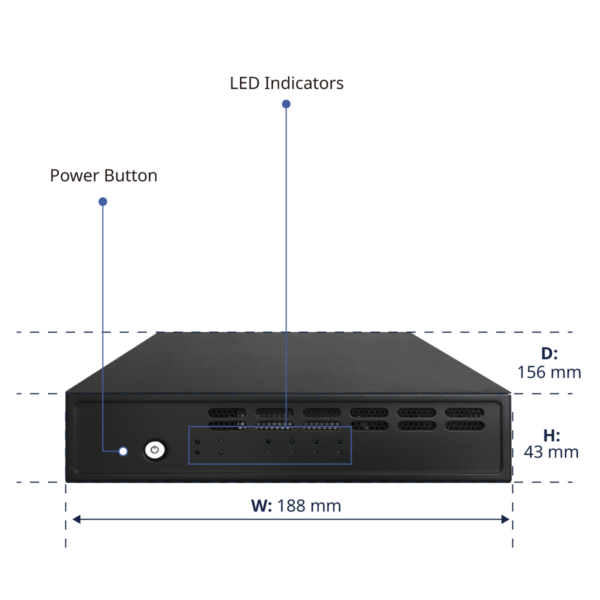

- Fanless design
- TPM 2.0 support
Contact us, for customized product package!
Get A Quote
The CAF-026F is based on Intel’s well-established and proven Atom Processor C-Series, supporting Intel QAT to significantly accelerate encryption and decryption. This compact desktop appliance is ideal as an SD-WAN or cybersecurity solution in small to medium-sized organizations or enterprise branch offices without breaking the bank, even when deployed in large numbers.
If used as a security solution like UTM (unified threat management) or NGFW (next-generation firewall), the CAF-026F can protect company networks from cyberattacks, while also serving as a secure SD-WAN solution in a compact form factor to provide fast and reliable networking for remote branch locations. With four Gigabit Ethernet ports, the CAF-026F provides sufficient network connections for such a small form factor and the fanless design ensures quiet operation, especially important when used inside an office workplace.
The CAF-026F utilizes Intel’s Atom Processor C-Series with either four or two cores (Denverton-NS Refresh), allowing customers to choose based on their preferences. Particularly crucial for numerous industries is Intel Quick Assist Technology (QAT) included in these System-on-Chips. This technology is essential as it enables fast secure data collection at the network edge and transmission to the cloud, ensuring that information remains protected from unauthorized access when used beyond corporate firewalls. Devices like the CAF-026F that support QAT experience encryption and decryption speeds more than ten times faster compared to those without QAT.
The device can be equipped with up to 32 GB of DDR4 SO-DIMM main memory, optional with ECC. The CAF-026F uses a SATA 3.0 connector onboard for a common solid state or hard drive to provide operating system and software. For additional storage, the system offers one microSD card slot. The optional Trusted Platform Module is supported with a TPM 2.0 header onboard.
