PECA-6232T

Fanless DIN-Rail Gateway of Intel® Atom® x6000 Processor and Up to 6 Ethernet Ports with 2-Segment Bypass

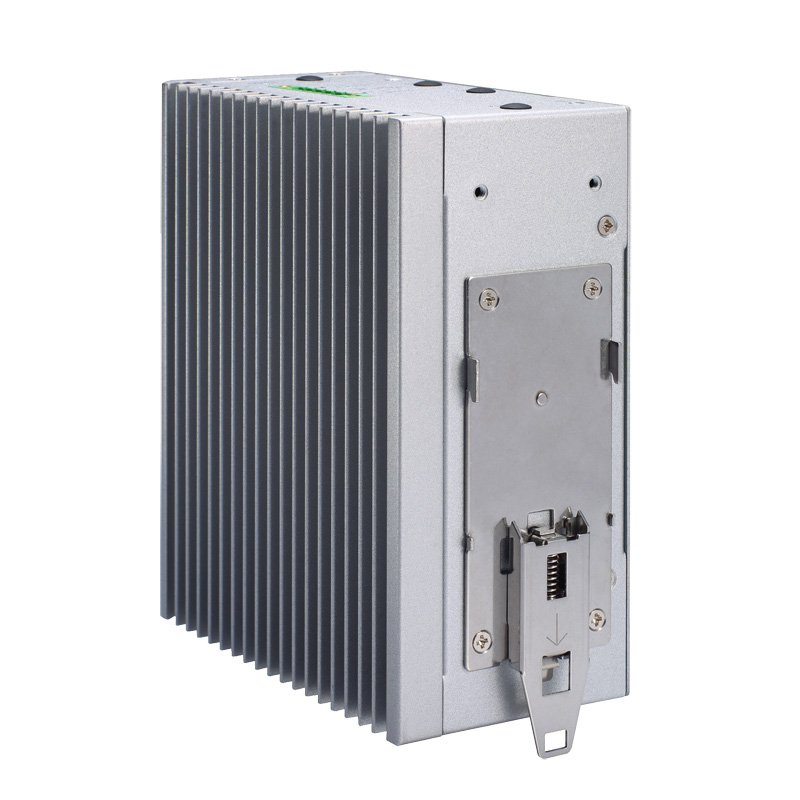

Fanless DIN-Rail Gateway with Wide Operating Temperature from -40°C to +70°C
Intel® Atom® x6212RE/x6414RE Processor (Formerly Elkhart Lake)
Up to 6x Ethernet Ports with 2x GbE SFP, 2x GbE LAN (Bypass) and 2x 2.5GbE LAN (Bypass)
Dual Wide Power Input of 9 to 36VDC
Supports 5G with M.2 Key B 3042/3052 and TPM 2.0

We also provide additional features to our finished products if requested.
Contact us, for customized product package!
Get A Quote

The PECA-6232T is the perfect fanless DIN-rail gateway for companies that need reliable and robust network connectivity. This powerful gateway comes with an Intel^® Atom^® x6000 processor, up to six Ethernet ports with a 2-segment bypass, dual broad power input, and support for 5G connectivity in demanding industrial environments. Enjoy cost-savings and easy deployment and management with the PECA-6232T.

Specifications

Downloads

Back to list

Processor:	Intel® Atom® x6212RE/x6414RE (2C/4C) processor (Formerly Elkhart Lake)
Memory:	1x DDR4-3200 SODIMM up to 32GB
Ethernet:	2x GbE ports (Marvell 88E1512) with LAN Bypass 2x 2.5GbE ports (Intel® I225-IT) with LAN Bypass and TSN function 2x GbE SFP (Intel® I210-IS)
Bypass:	2x Bypass segments in 2x GbE ports and 2x 2.5GbE ports
Expansion:	1x M.2 Key-B 3042/3052 slot (PCIe + USB interface) for 5G option 1x Full-size mini PCI-E slot (USB + SATA interface)
Storage:	1x 2.5" SATA 3.0 SSD 1x eMMC onboard (optional)

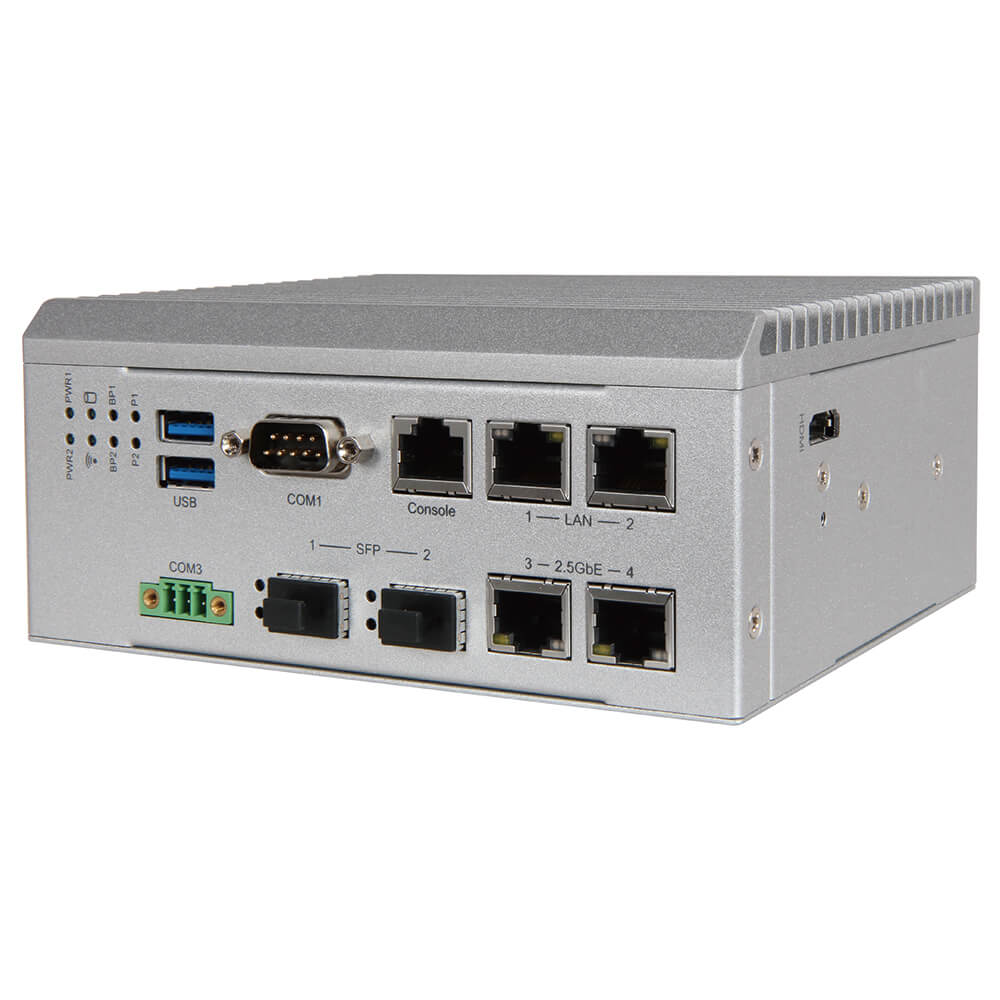

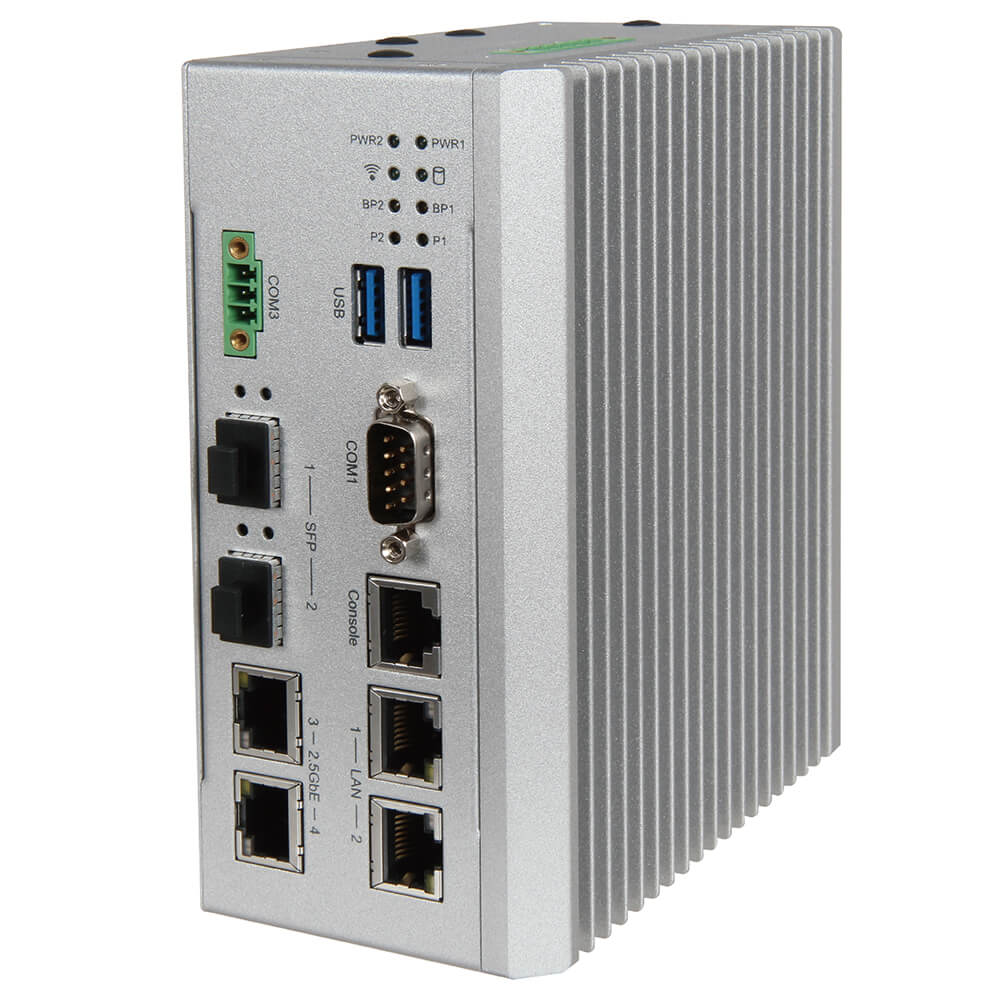

I/O Interfaces:	1x RJ45 system console port 1x DB9 COM port (RS-232/422/485) 1x 3-pin terminal block COM port (RS-485) 1x HDMI 2x USB 3.0 ports 1x Tact switch for reset 4x Antenna holes 1x Power input connector
Security:	TPM 2.0
Power:	9 to 36VDC (typical 12/24V) with terminal block for dual power input
Dimension:	66 (W) x 127 (D) x 150 (H) mm 2.6" (W) x 5"(D) x 5.9" (H)
Operating Temperature:	Temperature: -40°C to +70°C (-40°F to +158°F) Humidity: 20 - 95% non-condensing
Storage Temperature:	Temperature: -40°C to +85°C (-40°F to +185°F) Humidity: 10 - 95% non-condensing
OS Support:	Windows / Linux Kernel
Certificates:	CE / FCC (Class A)
USB:	Dual USB 3.0 ports
COM Type:	1x DB9 (RS-232/422/485) 1x 3-pin terminal block (RS-485)
Indicator:	Power / Storage / LAN bypass / Wireless / Programmable LED
Graphic Interface:	1x HDMI
