Portwell - PNSD-1000

PNSD-1000

Desktop Network Appliance based on Intel Atom® x7000RE/x7000C Series

Intel Atom® x7000RE/x7000C Series and Intel® Core™ i3 N-Series Processors: integrated Intel UHD Graphics, Intel Deep Learning Boost (Intel DL Boost), Intel Advanced Vector Extensions (Intel AVX2) with INT8 support, and OpenVINO toolkit support
4x 2.5GbE RJ45 ports, 1x 1GbE SFP port
2x 2.5" HDD/SSD, 2x M.2 Key M for storage
1x M.2 Key B for 5G module, 1x M.2 Key E for WiFi module
Compact fanless system design

We also provide additional features to our finished products if requested.
Contact us, for customized product package!
Get A Quote

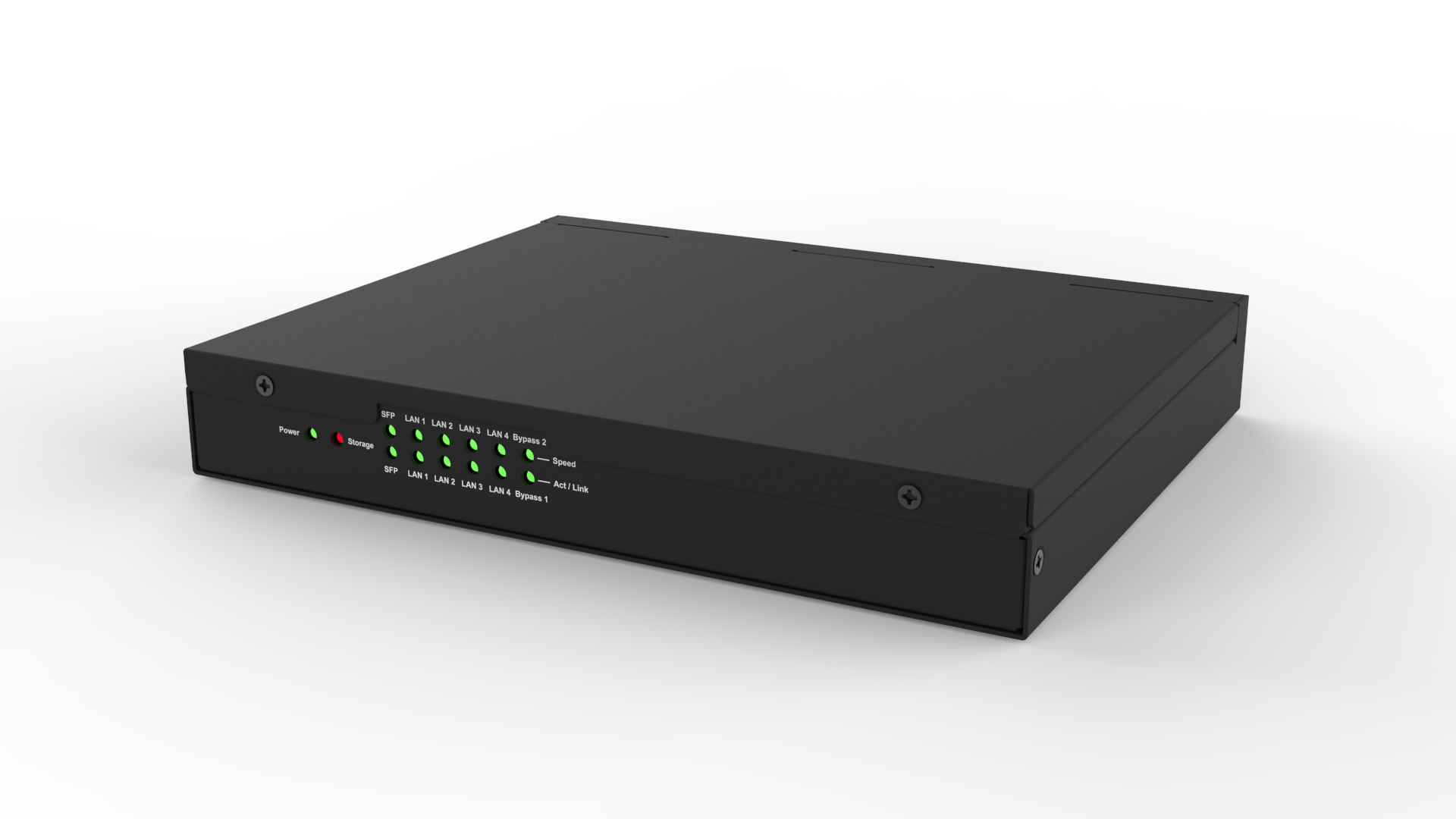

The Portwell PNSD-1000, a fanless embedded system designed with Intel Atom® x7000RE/x7000C Series Processors (codenamed Amston Lake) and Intel® Core™ i3 N-Series Processors (codenamed Alder Lake-N), boasts DDR5 SO-DIMM support up to 16GB, 2x USB 3.0 ports, 4x 2.5G LAN ports, and a 1G SFP port. It accommodates multiple storage options with 2.5" HDD/SSD.

Additionally, it integrates the latest M.2 type E interface to offer wireless connectivity, including WiFi, Bluetooth, and NFC (near-field communication) functionalities, making it an ideal IoT gateway solution.

Leveraging the Intel Atom® x7000RE/x7000C processor platform, this system enables users to seamlessly deploy deep learning inference at the industrial edge and in smart cities. It enhances computer vision solutions with built-in AI capabilities and ecosystemenabled camera modules, while delivering power- and cost-efficient performance to support latency-bounded workloads in robotics and automation. Its agile capabilities make it an excellent choice for facilitating application-specific tasks at the network edge.

Specifications

Back to list

Processor:	Intel Atom® x7000RE Series Processors Intel Atom® x7000C Series Processors Intel® Core™ i3 N-Series Processors Up to 8 Cores, 12W TDP
System:	Total 1 DIMM (1DPC) 1x DDR5 4800MHz SODIMM, up to 16GB
Firmware:	AMI Aptio® V UEFI BIOS

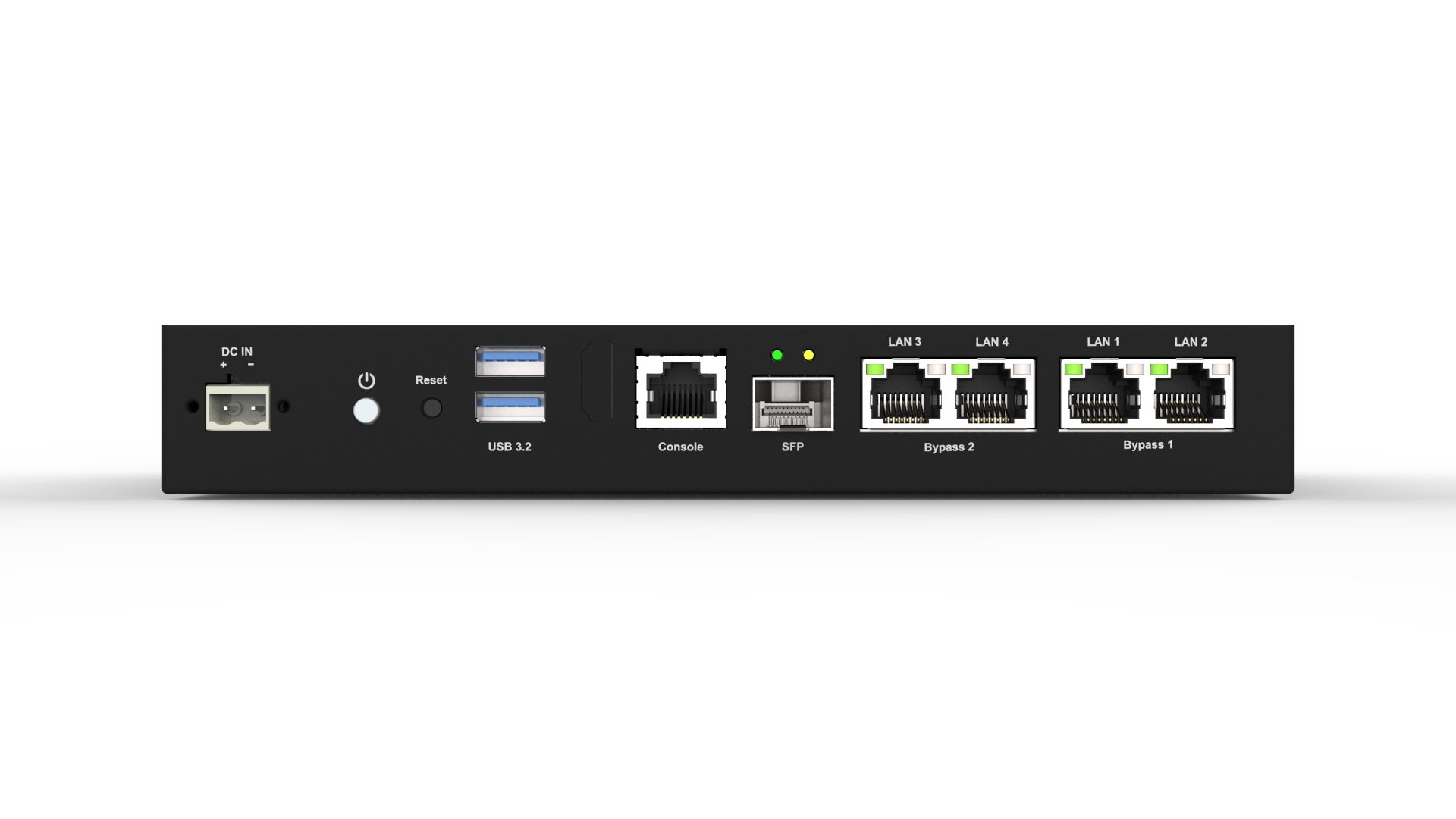

Ethernet:	4x 2.5GbE RJ45 with 2 pairs bypass 1x GbE SFP
Expansion:	1x M.2 Key B 3052 socket with dual SIM card slots (USB) 1x M.2 Key E 2230 socket (PCIe) (Optional)
Storage:	2x 2.5” SATA HDD/SSDs (Optional) 2x M.2 Key M 2280 sockets (NVMe or SATA) 1x eMMC5.1 up to 128GB (optional)
Power:	60W Power Adapter
Relative Humidity:	5% to 95% non-condensing
Dimension:	8.26” (W)x 6.59” (D)x1.23(H) 210mm(W) x167.4mm (D) x31.4mm (H)
Console:	1x RJ45 Console port
Security:	Onboard TPM 2.0
USB:	2x USB 3.2 Gen 1, Type A 2x USB 2.0 headers onboard

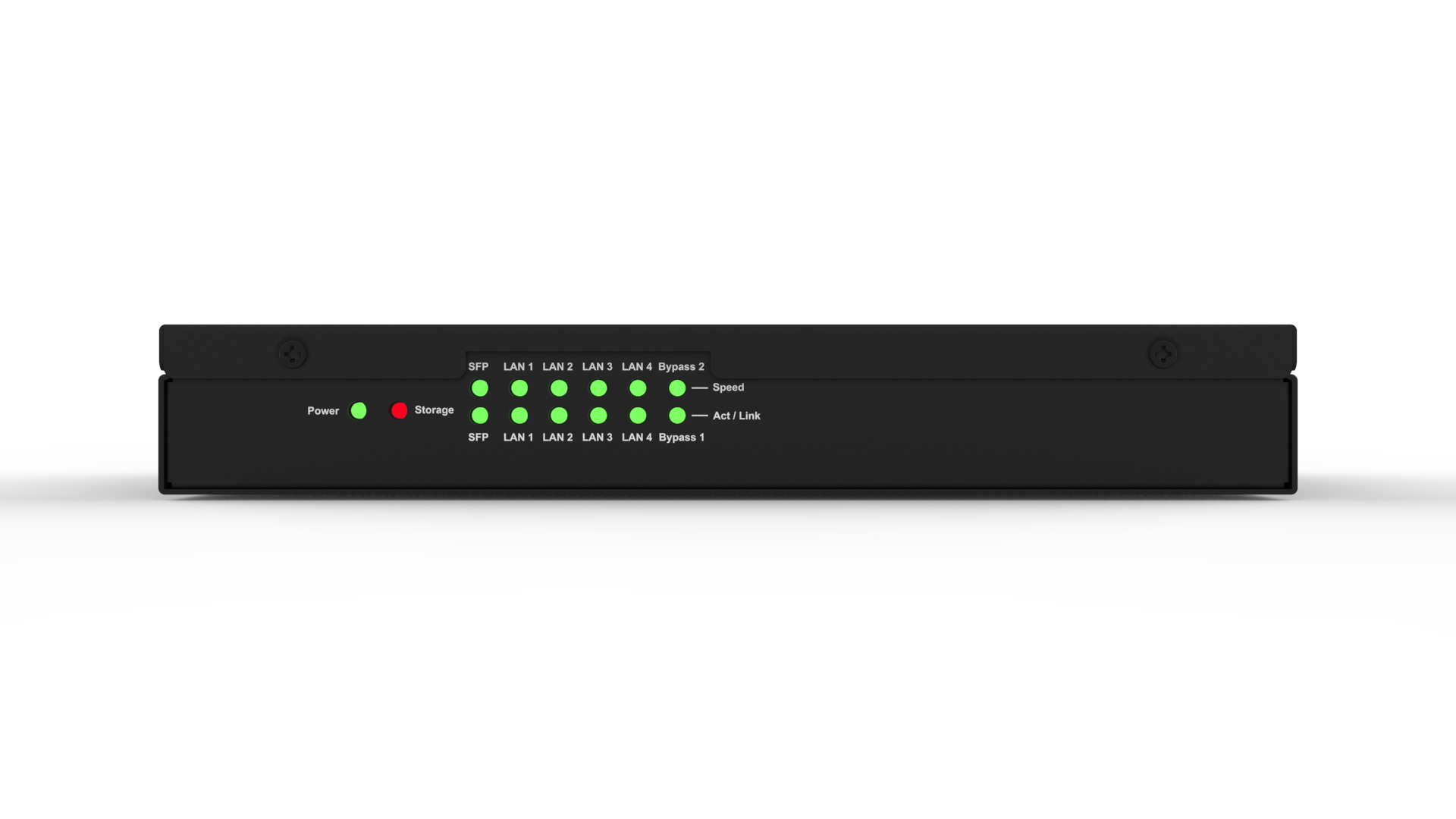

Indicator:	Power/HDD LEDs 2x RJ45 bypass status LEDs 2x SFP LEDs 8x RJ45 LEDs
Operating Temperature:	0°C to 40° C (32°F to 104° F)
Storage Temperature:	-20°C to 70° C (-4°F to 167° F)
Certificates:	CE/FCC Compliance
