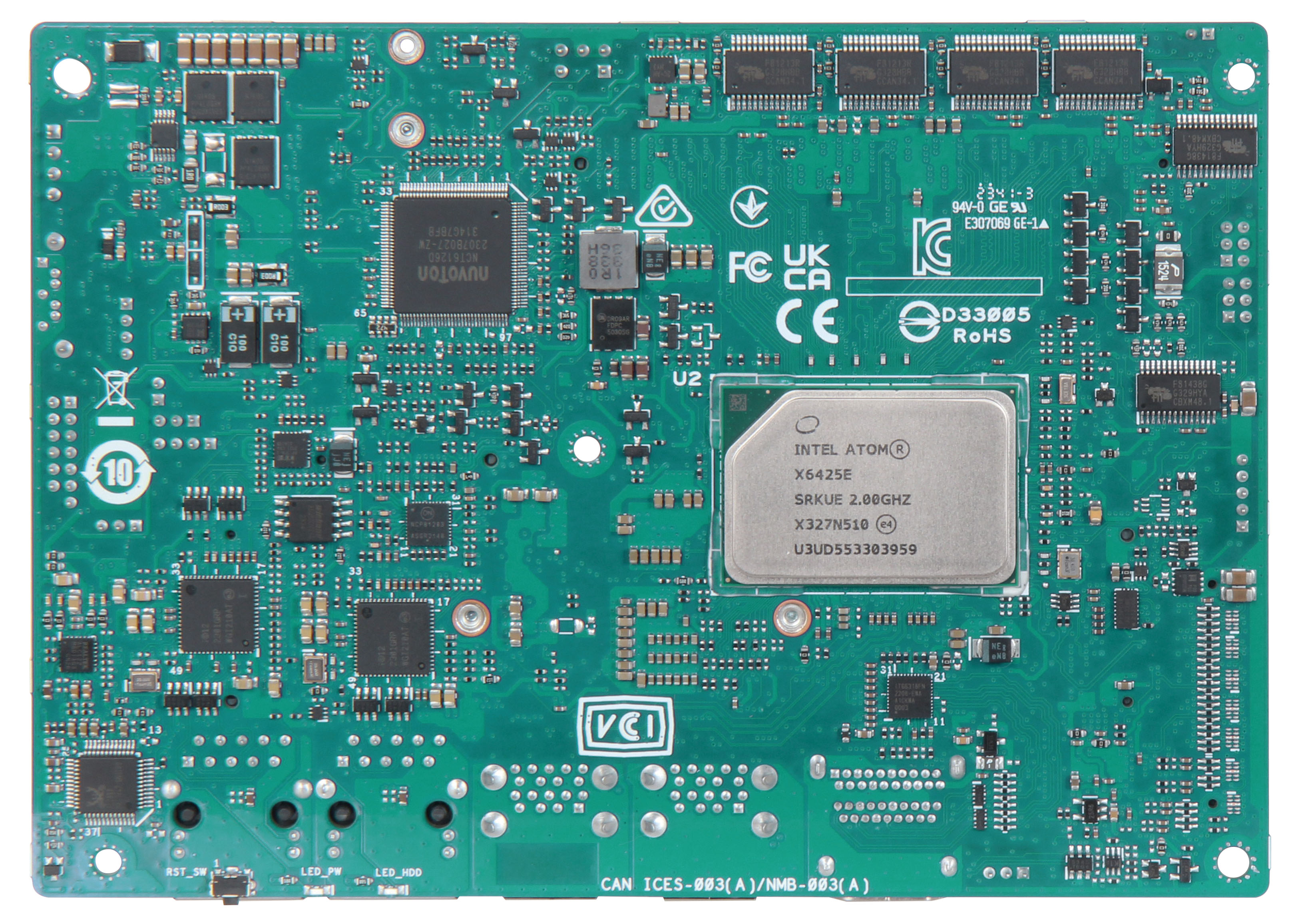

The PEB-2274 3.5" embedded system board is built upon Intel® Atom x6000E processor series (formerly Elkhart Lake) that is integrated with Intel UHD Graphics. It supports industrial temperature range from -40°C to 85°C, and can operate with TDP under 12W for fanless applications.

PEB-2274 supports dual Gigabit Ethernet LAN ports enabling real-time computing and control capability. There are also four USB 3.2 Gen 2 ports that ensures fast data transmission. Moreover, it supports M.2 E key, M.2 B key and M.2 M key sockets for flexible expansions including wireless modules and storage devices. In addition, PEB-2274 also supports wide input voltage range of 9V~36V.

These dynamically integrated features and flexible expandability make PEB-2274 suitable for a diverse range of industrial and embedded IoT computing applications, such as automation, robotic control, medical equipment, digital signage, outdoor gateway, and more.

• Specifications

CPU:	Intel Atom® x6425E Processor (4 x 3.00 GHz, 1.5 MB L2 Cache, 12 W) Intel® Atom® x6425RE Processor (4 x 1.9GHz / 1.90 GHz, 1.5 MB L2 Cache, 12 W)
Processor:	Intel® Atom® x6425E, 4 cores, 2.0GHz/3.0GHz, 12W TDP
Chipset:	Integrated
Memory:	- DDR4 3200 MHz, In-Band ECC (IBECC) - SO-DIMM socket, up to 32GB
Graphic Controller:	Intel® 10th Gen UHD Graphics
Graphic Interface:	- HDMI 2.0 up to 4K x 2K @ 60 Hz - DP++ 1.2 up to 4096 x 2160 @ 60 Hz - LVDS up to 1920 x 1080 @ 60 Hz
Storage:	1x SATA III
Ethernet:	2x Intel® i210IT with 2x RJ-45
Expansion:	- 1x M.2 E key, type 2230 for WIFI/BT device - 1x M.2 M key, type 2280 (SATA mode & PCIe x2 mode) - 1x M.2 B key (USB 2.0)
Serial Interface:	- 6 (2 x RS-232/422/485, 4x RS 232)
USB:	- 4x USB 3.2 Gen2 ports on rear I/O - 1x USB 2.0 Header support additional 2x USB 2.0 connectors
Audio:	- Realtek ALC897 - Line-out or Mic-in
Power Supply:	DC 9V~36V input
Environment:	- Operating temperature: -40ºC to 85ºC - Non-operating temperature: -40ºC to 85ºC - Relative humidity:10% to 95% (non-condensing)
MTBF:	TBD
Dimensions:	146mm(L) x 105(W) mm
Watchdog Timer:	YES

• Order Info

name	code	description	availability
PEB-2773VGA2ATM-N4200	AB1-3F85Z	3.5" ESB, Intel Apollo Lake SoC on Board (N4200, 1.1GHz, 4C, 2M) w/DDR3L/DP/HDMI/GbE/COM/Audio/USB	Q4/2017
PEB-2773VGA2ATM-N3350	AB1-3F86Z	3.5" ESB, Intel Apollo Lake SoC on Board (N3350, 1.1GHz, 2C, 2M) w/DDR3L/DP/HDMI/GbE/COM/Audio/USB	Q4/2017
PEB-2773VG2ATM-E3950	AB1-3F63Z	3.5" ESB, Intel Apollo Lake SoC on Board (X5-E3950, 1.6GHz, 4C, 2M) w/DDR3L/DP/HDMI/GbE/COM/Audio/USB, ext. temp range	MP
PEB-2773VG2ATM-E3940	AB1-3F64Z	3.5" ESB, Intel Apollo Lake SoC on Board (X5-E3940, 1.3GHz, 4C, 2M) w/DDR3L/DP/HDMI/GbE/COM/Audio/USB, ext. temp range	MP
PEB-2773VG2ATM-E3930	AB1-3F65Z	3.5" ESB, Intel Apollo Lake SoC on Board (X5-E3930, 1.3GHz, 2C, 2M) w/DDR3L/DP/HDMI/GbE/COM/Audio/USB, ext. temp range	MP
