FUDA4

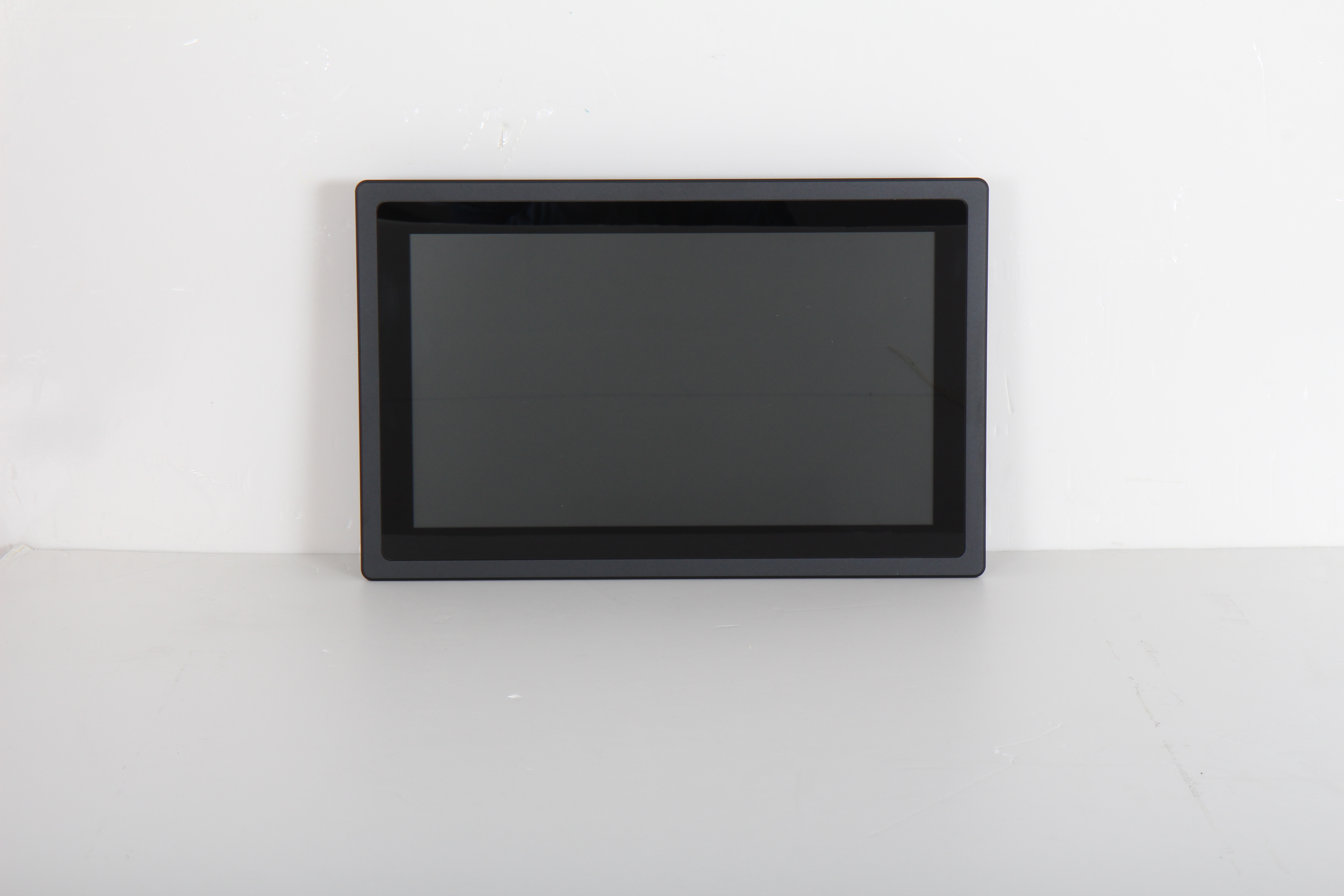

15.6” P-CAP Touch Panel PC with Intel Atom® x7000RE Series SoC Platform

DDR5 4800 SO-DIMM up to 16GB
Onboard eMMC, M.2 2242/2280 M key socket
Dual 2.5GbE LAN ports
Triple displays output by DP & HDMI & LVDS
Wide DC Input 12~24V
M.2 E key 2230 socket
Onboard TPM 2.0

We also provide additional features to our finished products if requested.
Contact us, for customized product package!
Get A Quote

15.6” P-CAP Touch Panel PC with Intel Atom® x7000RE Series SoC Platform

Specifications

Related Products

Back to list

T: +31-252-278800
info@portwell.eu

This website uses cookies to offer you an optimal website experience. These include cookies that are necessary for the operation of the site and for the control of our commercial corporate goals (Mandatory / Technical Cookies), as well as those that are only used for anonymous statistical purposes, for comfort settings or to display personalized content (Marketing Cookies). You can decide which category you want to allow. Please note that based on your settings, not all functions of the page may be available. For further information regarding cookies please see our Data Protection Declaration and regarding us on the Imprint.

Mandatory/Technical

These cookies are needed for a smooth operation of our website.

Name	Purpose	Lifetime	Type	Provider
CookieConsent	Saves your consent to using cookies.	1 year	HTML	Website
fe_typo_user	Assigns your browser to a session on the server.	session	HTTP	Website

Marketing

With the help of these cookies we strive to improve our offer for our users. By means of anonymized data of website users we can optimize the user flow. This enables us to improve ads and website content.

Name	Purpose	Lifetime	Type	Provider
_pk_id	Used to store a few details about the user such as the unique visitor ID.	13 months	HTML	Matomo
_pk_ref	Used to store the attribution information, the referrer initially used to visit the website.	6 months	HTML	Matomo
_pk_ses	Short lived cookie used to temporarily store data for the visit.	30 minutes	HTML	Matomo
_pk_cvar	Short lived cookie used to temporarily store data for the visit.	30 minutes	HTML	Matomo
_pk_hsr	Short lived cookie used to temporarily store data for the visit.	30 minutes	HTML	Matomo
_ga	Used to distinguish users.	2 years	HTML	Google
_gat	Used to throttle request rate.	1 day	HTML	Google
_gid	Used to distinguish users.	1 day	HTML	Google
_ga_--container-id--	Persists session state.	2 years	HTML	Google
_gac_--property-id--	Contains campaign related information for the user. If you have linked your Google Analytics and Google Ads accounts, Google Ads website conversion tags will read this cookie unless you opt-out.	3 months	HTML	Google
_gcl_au	Used by Google AdSense to experiment with advertisement efficiency.	3 months	HTML	Google
AMP_TOKEN	Contains a token that can be used to retrieve a Client ID from AMP Client ID service. Other possible values indicate opt-out, request in progress or an error retrieving a Client ID from AMP Client ID service.	1 year	HTML	Google
_dc_gtm_--property-id--	Used by DoubleClick (Google Tag Manager) to help identify the visitors by either age, gender or interests.	2 years	HTML	Google
MUID	Used as unique user identifier. The cookie allows user tracking across many Microsoft domains.	1 year	HTML	Bing
MUIDB	Saves anonymous user data from multiple website visits on multiple sites to test advertisement efficiency.	1 year	HTML	Bing
_fbp	Stores the unique visitor ID.	28 days	HTML	facebook
facebookPixel	If JavaScript is not enabled, this pixel initiates a connection to facebook.	none	Pixel	facebook
__RequestVerificationToken	The cookie is used to implement anti-forgery concerning Microsoft-forms on the website.	session	HTTP	Microsoft
AADNonce.forms	The cookie is used to implement Microsoft-forms on the website.	session	HTTP	Microsoft
DcLcid	The cookie is used to implement Microsoft-forms on the website.	3 months	HTTP	Microsoft
MSFPC	The cookie allows user tracking across many Microsoft domains and is used for Bing Analytics.	1 year	HTML	Microsoft
UID	The cookie is used for market and user research (Scorecard Research).	2 years	HTML	Slideshare
UIDR	The cookie is used for market and user research (Scorecard Research).	2 years	HTML	Slideshare
bcookie	Browser Identifier cookie to uniquely identify devices accessing LinkedIn to detect abuse on the platform.	2 years	HTML	Slideshare
lang	Used to memorize a user's language setting.	session	HTML	Slideshare

External content

With the help of these cookies we strive to improve our offer for our users. By means of providing video content or other useful content like maps to enhance the user experience.

Name	Purpose	Lifetime	Type	Provider
GoogleMaps	Is used to connect to Google Maps and to display those maps.	none	Connection	Google
YouTube	Is used to connect to YouTube and to display videos.	none	Connection	YouTube
MicrosoftStream	Is used to connect to Microsoft Stream and display videos.	none	Connection	MicrosoftStream
Signature_Api	Is used to connect to the Microsoft signature API.	session	HTTP	MicrosoftStream
Authorization_Api	Is used to connect to the Microsoft authorization API.	session	HTTP	MicrosoftStream
RedirectToThinEmbed	Is used to embed Microsoft Stream videos.	session	HTTP	MicrosoftStream
UserSession_Api	Is used to store the user session of the Microsoft API.	session	HTTP	MicrosoftStream
wfeSessionId	Is used to store the Web Front End Session ID of Microsoft Stream.	session	HTTP	MicrosoftStream
__cf_bm	Required to see Vimeo content.	1 year	HTTP	Vimeo
OptanonAlertBoxClosed	Saves the state of your Vimeo data protection consent.	1 year	HTML	Vimeo
OptanonConsent	Saves the state of your Vimeo data protection consent.	1 year	HTML	Vimeo
player	This cookie saves your preferences before playing an embedded Vimeo video. This will bring you back to your preferred settings the next time you watch a Vimeo video.	1 year	HTML	Vimeo
vuid	This cookie gathers information about your actions on websites embedding Vimeo videos.	2 years	HTML	Vimeo
_abexps	This cookie remembers your settings. Settings can include language, region or login user. In general this cookie saves data about how you use Vimeo.	1 year	HTML	Vimeo
continuous_play_v3	This cookie is a first-party cookie from Vimeo. The cookie collects information on how you use the Vimeo service. For example, the cookie saves when you pause and play a video again.	2 years	HTML	Vimeo

Analytics

Name	Purpose	Lifetime	Type	Provider
_ga	Used to distinguish users.	2 years	HTML	Google
_gat	Used to throttle request rate.	1 day	HTML	Google
_gid	Used to distinguish users.	1 day	HTML	Google
_ga_--container-id--	Persists session state.	2 years	HTML	Google
_gac_--property-id--	Contains campaign related information for the user. If you have linked your Google Analytics and Google Ads accounts, Google Ads website conversion tags will read this cookie unless you opt-out.	3 months	HTML	Google
_gcl_au	Used by Google AdSense to experiment with advertisement efficiency.	3 months	HTML	Google
AMP_TOKEN	Contains a token that can be used to retrieve a Client ID from AMP Client ID service. Other possible values indicate opt-out, request in progress or an error retrieving a Client ID from AMP Client ID service.	1 year	HTML	Google
_dc_gtm_--property-id--	Used by DoubleClick (Google Tag Manager) to help identify the visitors by either age, gender or interests.	2 years	HTML	Google

Firmware:	AMI
Ethernet:	Chipset: Dual Intel® Gigabit Ethernet Chipset
Watchdog Timer:	Programmable 1 ~ 255 sec
Storage:	Storage Device: 1 x 2.5″ SATA HDD / SSD, 1 x Mini-mSATA
OS Support:	Windows 10/ Linux™
Serial Interface:	2 x RS-232/422/485 (Expansion : Option 0)
Graphic Interface:	1 x HDMI
USB:	FUDA3-S1022: 1 x USB OTG, 2 x USB 3.0 FUDA3-S1222 & FUDA3-S1522: 1 x USB OTG, 2 x USB 3.0, 2 x USB 2.0 (Expansion: Option 0)
Ethernet:	2 x Gigabit Ethernet
Other:	1 x SMA Antenna hole for WiFi/LTE Solution
Expansion:	FUDA3-S1022 -1 x Full-size Mini-PCIe socket -1 x Half-size Mini-PCIe/Mini-mSATA socket -switch by jumper FUDA3-S1222 & FUDA3-S1522 -1 x Full-size Mini-PCIe socket -1 x Half-size Mini-PCIe/Mini-mSATA socket switch by jumper -2 x RS-232/422/485, 1 x RS-232 (Expansion: option 1)
Dimension:	FUDA3-S1022: 282 x 238 x 57.3 mm FUDA3-S1222: 305 x 260 x 58.2 mm FUDA3-S1522: 384 x 310 x 56.6 mm
Mounting:	VESA Mount 75 x 75& 100 x 100; Panel Mount
Weight:	Weight (Kg)(N) FUDA3-S1022: 3.5 Kg FUDA3-S1222: 3.9 Kg FUDA3-S1522: 5.1 Kg
Weight:	Weight (Kg)(G) FUDA3-S1022: 5.8 Kg FUDA3-S1222: 10.3 Kg FUDA3-S1522: 7.8 Kg
Power Supply:	DC 12 ~ 24V input with 3-pin Terminal Block Connector
Power Requirement:	FUDA3-S1022: 33.5W (12V); 33.6W (24V) FUDA3-S1222: 40.9W (12V); 39.4W (24V) FUDA3-S1522: 40.5W (12V); 40.2W (24V)
Storage Temperature:	-25°C ~ 60°C / -40°C ~ 85°C (20 ~ 90% non-condensing)
Vibration:	1.0G (SSD) and 0.5G (HDD) , Power on ; 2.16G, Packaged; 5~500Hz, IEC 60068-2-6
Shock:	15G peak acceleration, 11 ms (Power on condition), IEC 60068-2-27
IP Protection:	IP65 (Front) / IP20 (Rear), IEC 60529 Edition 2.1 Standard
Certificates:	CE/FCC Class A, UKCA, EN 62368-1, EN 61000-6-2 , EN 61000-6-4
Graphics:	Intel® Gen HD Graphics 505
LAN Chipset:	Dual Intel® Gigabit Ethernet Chipset
LVDS:	Single/ Dual Channel 24-bit
